RF-ZZS desktop UV printer
Print on flat phone cases, acrylic and nameplates within 320×580 mm. Media height: 0–80 mm. Use an external Windows PC.
Browse all equipment →
RF-ZZS · Custom phone-case and gift designs
What you can print
For flat items; cylinder and UV transfer-film printing are not supported. Test actual items for materials, dimensions and holding methods.
Phone-case customization
Print photos, names or event graphics. Check the case material and holding method first.
Gifts and nameplates
Test color and how well the print holds on flat items such as acrylic, wood and nameplates.
Arrange several items
Use a fixture to hold several items, then arrange the designs. Staff load and unload them.
RF-ZZS · Custom phone-case and gift designs

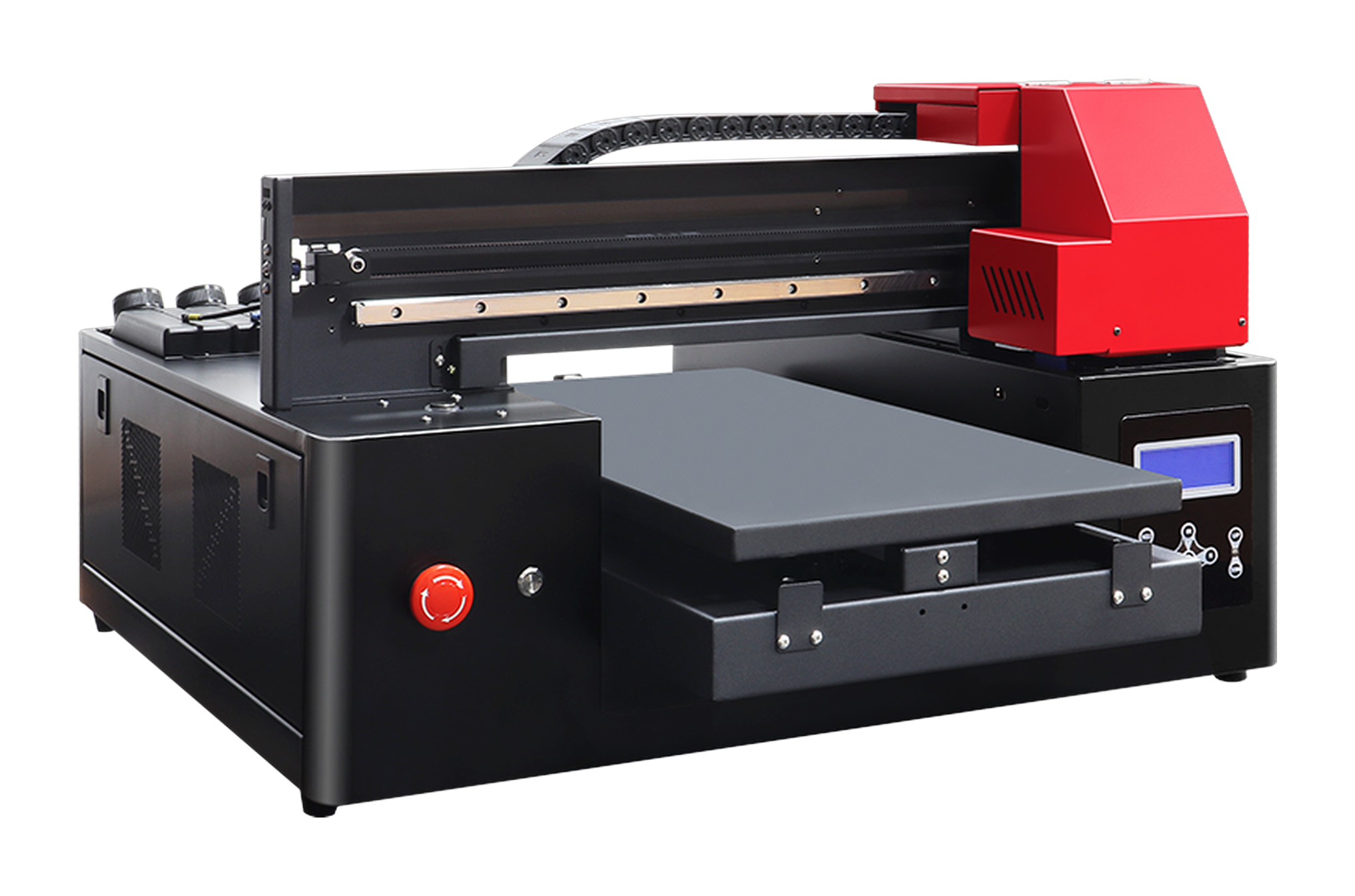

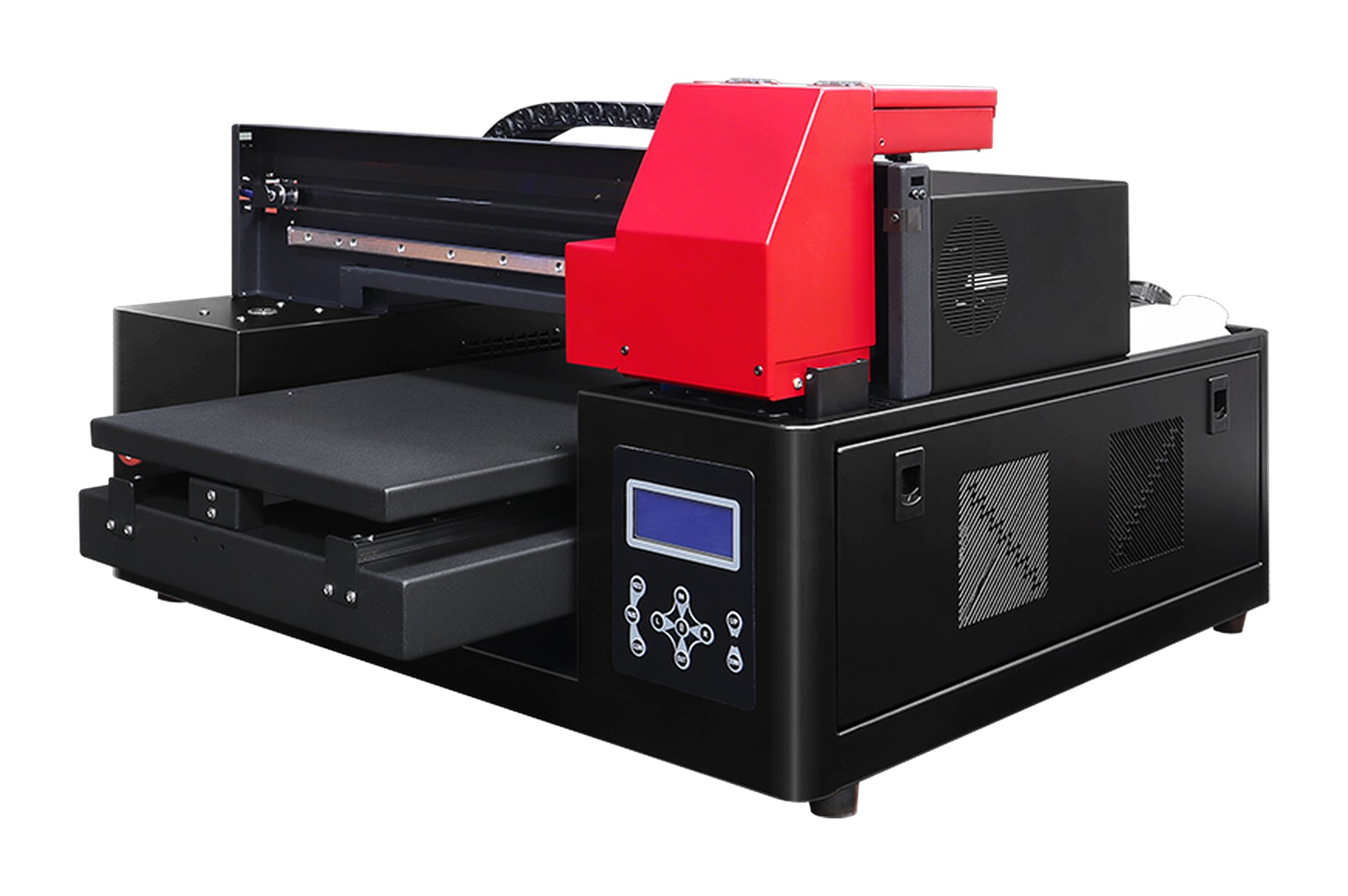

Machine views

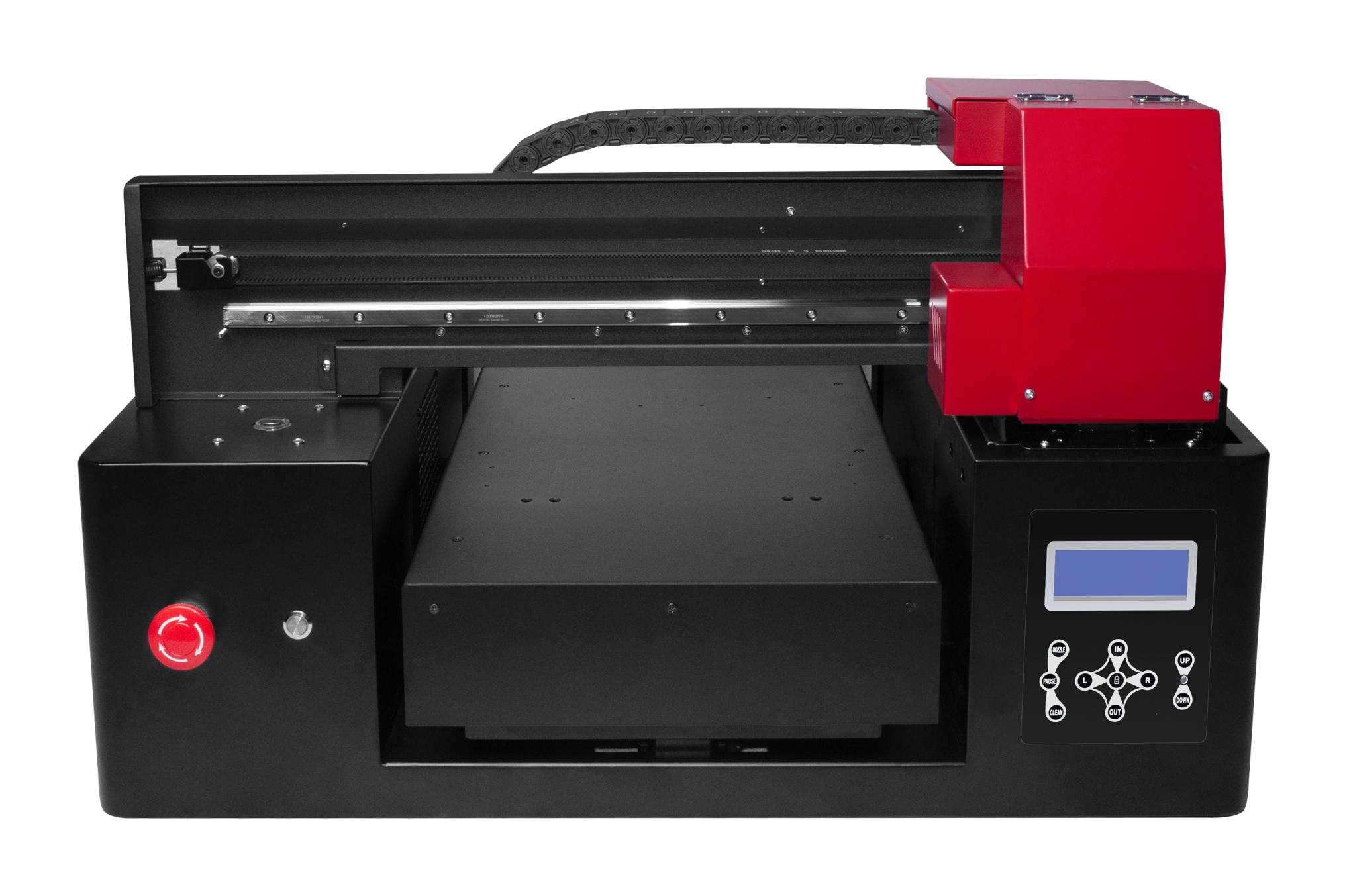

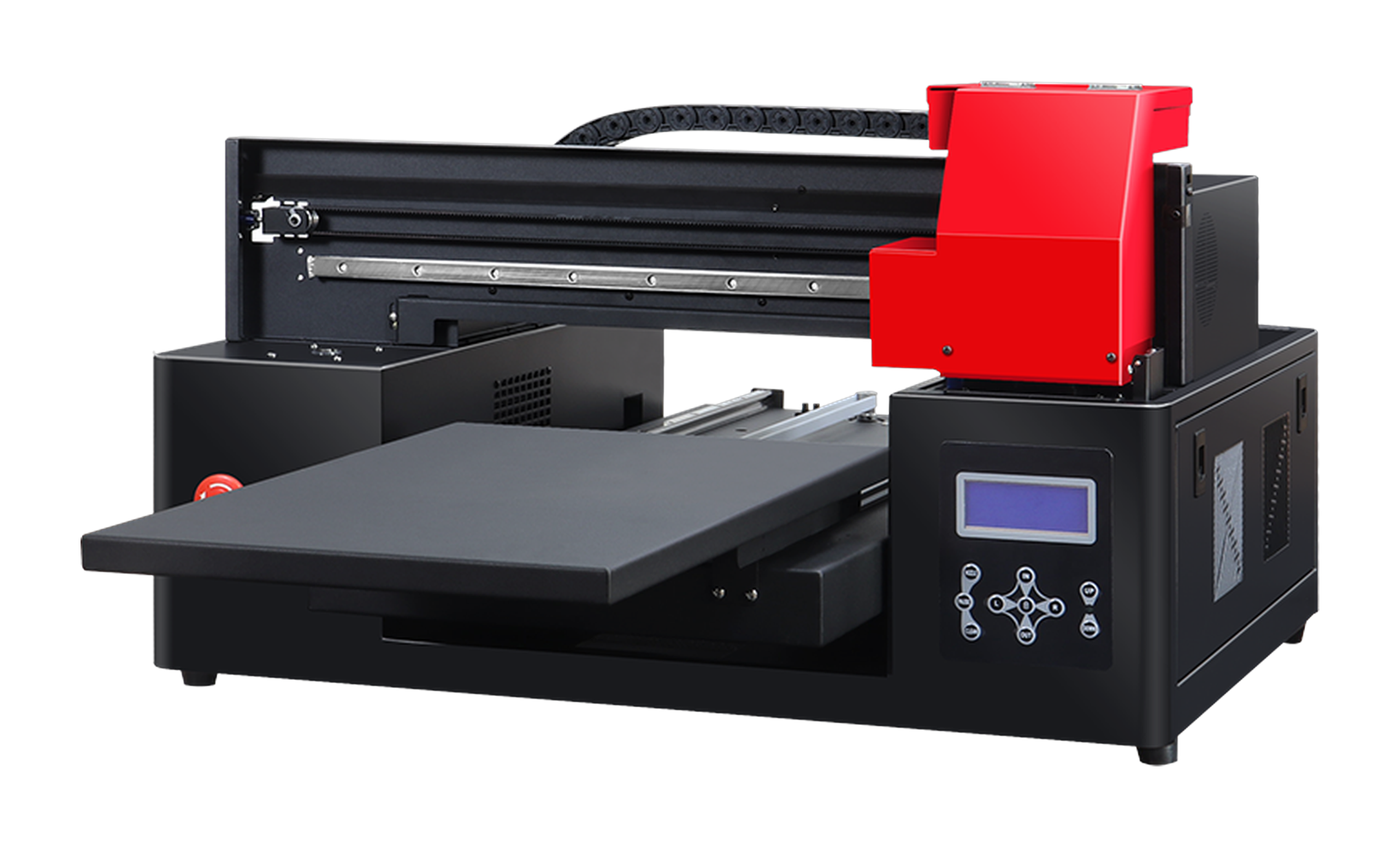

View image ⤢Front view
Select a view above, or open the image to see more detail.
RF-ZZS · Custom phone-case and gift designs
See the printed phone case.
Frames from this machine’s actual printing video. Test your own case material and artwork first.

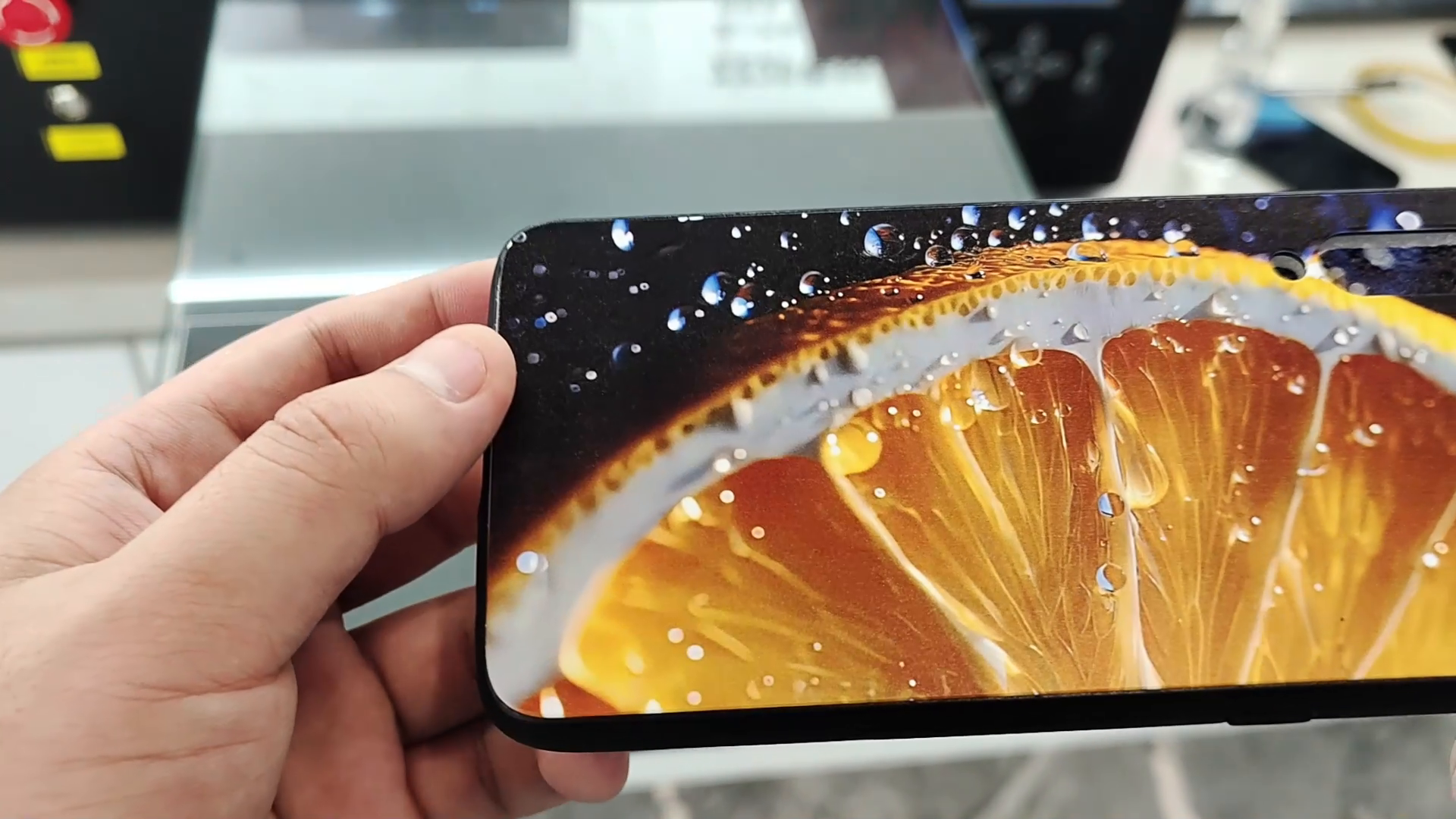

View full image ⤢Printed phone case
Actual print-video frame, shown at its full aspect ratio.
RF-ZZS · Custom phone-case and gift designs
Choose ink and printheads for your intended use.
Choose separate setups for ordinary items, textiles and food. Test actual items before agreeing a setup.
UV flatbed printing
This page focuses on phone cases, acrylic and nameplates. Confirm color, white and varnish channels for the setup.
Printheads and platform
Choose single or dual heads and the head model for the project. Vacuum platform optional.
Textile or food use
For fabrics or food, confirm the matching ink, material and complete machine setup separately.
RF-ZZS · Custom phone-case and gift designs
Key specifications
- Print area
- 320×580 mm
- Media height
- 0–80 mm; confirm with actual items and fixtures
- Ink and effects
- Choose by use; confirm UV color, white and varnish channels separately
- Height sensing and adjustment
- Infrared-triggered automatic descent; automatic / manual adjustment
- Computer setup
- External Windows PC; Gigabit Ethernet
- Platform and holding
- Vacuum platform optional; fixture matched to items
- Machine size and net weight
- 805×765×450 mm; 41 kg
- Printhead model
- EPSON-F1080 (optional i1600 / 3200)
- Printhead count
- Single / dual heads
- Printhead maintenance
- Automatic cleaning
- Power supply
- AC 220 V / 110 V, 50–60 Hz
RF-ZZS · Custom phone-case and gift designs
Load, check placement, then print.
Operate from an external Windows PC. Load and collect items manually.
01 / 05
Prepare the artwork
Set artwork dimensions for the item and prepare the file in the print software.
RF-ZZS · Custom phone-case and gift designs
Print your artwork using an external PC.
Connect to a Windows PC via Gigabit Ethernet and use the supplied print software.
Files and print software
Print files use TIF format; prepare artwork as covered in setup training.
On-machine controls and maintenance
Machine buttons control platform movement, nozzle checks and cleaning.
RF-ZZS · Custom phone-case and gift designs
Machine details
Actual machine structure photos.

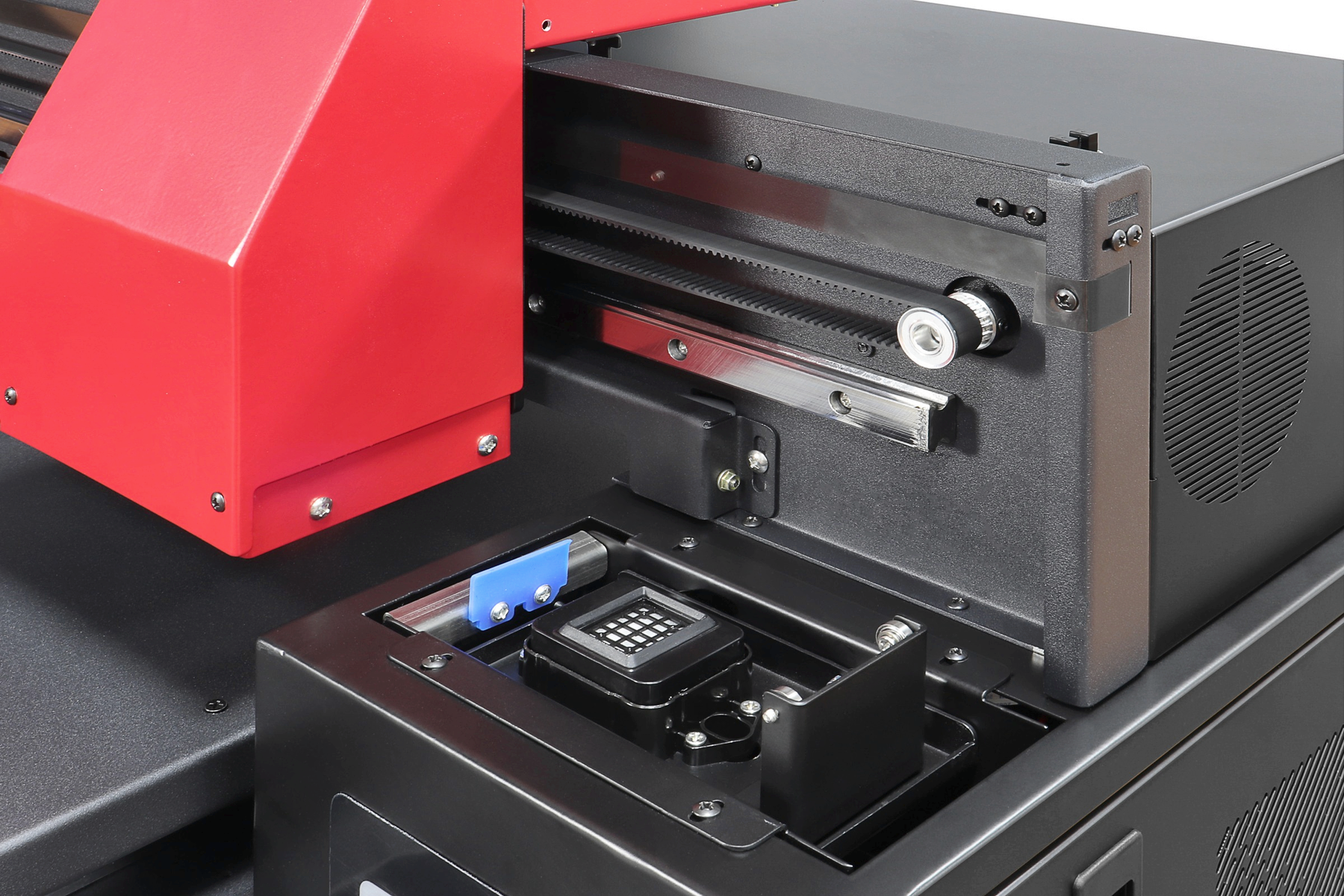

View full image ⤢Printhead carriage and cleaning area
Follow technical training when checking the printhead and maintenance area.

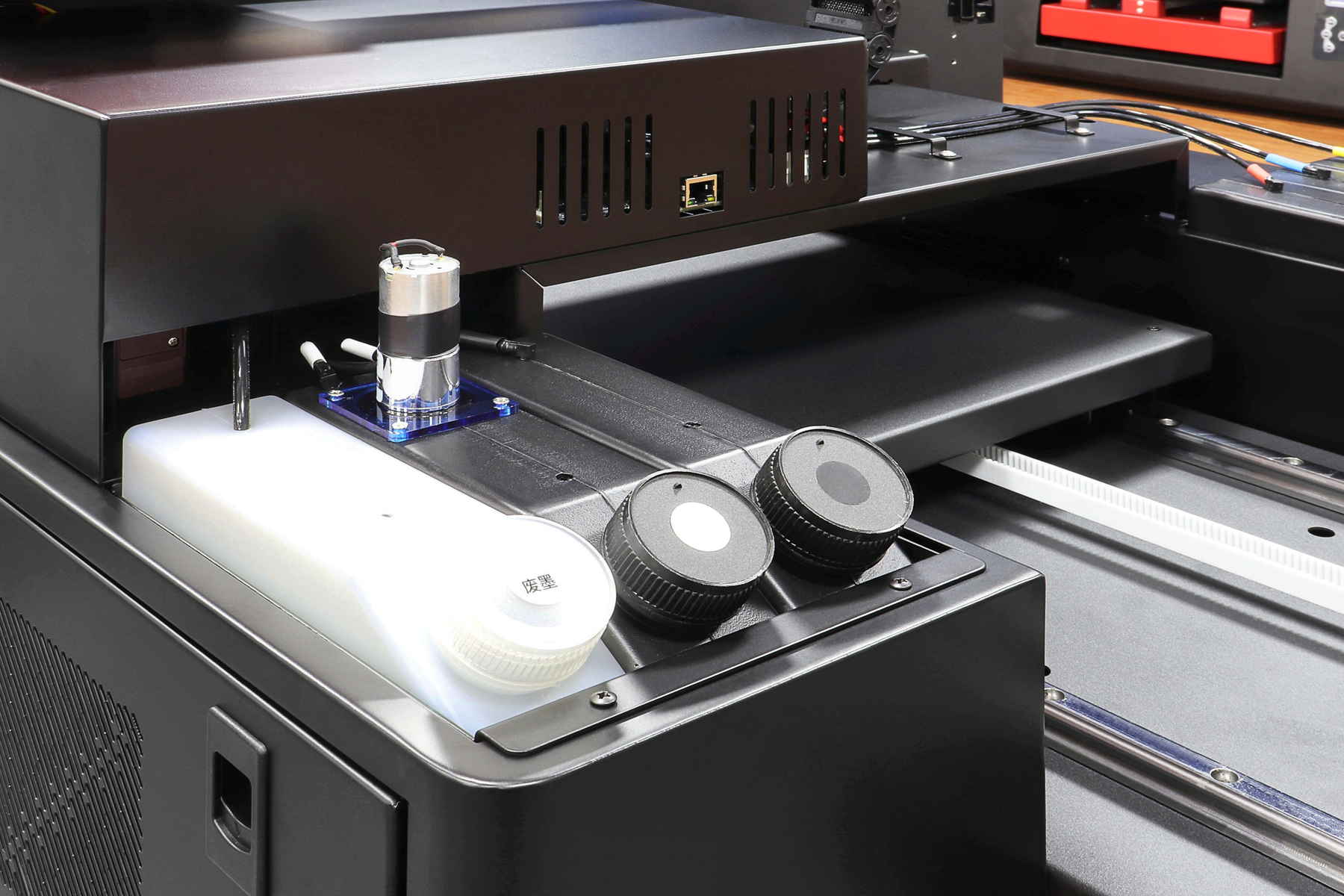

View full image ⤢Ink lines and maintenance components
Use the specified ink for the configuration and check lines and connections.

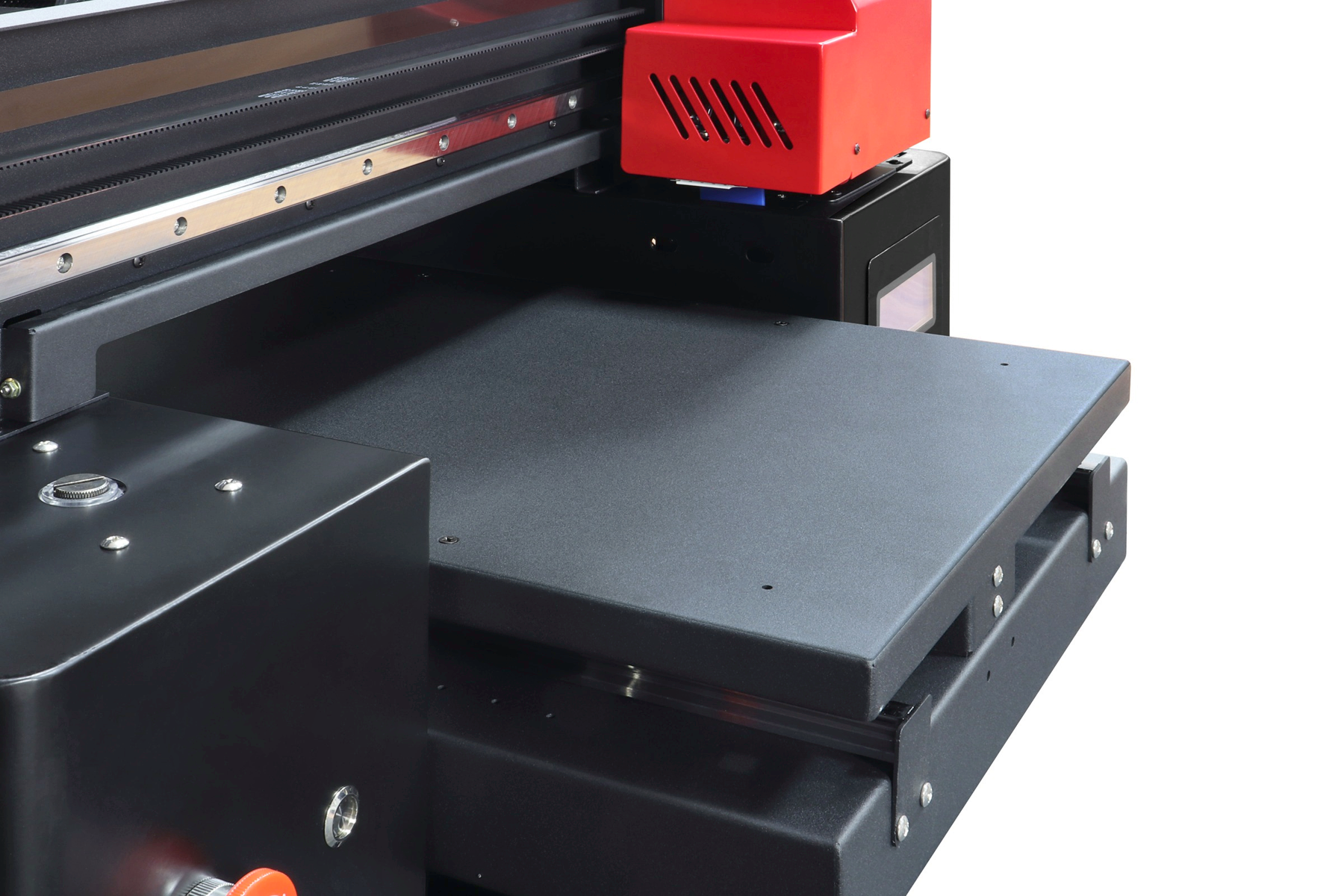

View full image ⤢Media printing platform
Place and secure items; allow room for platform travel.

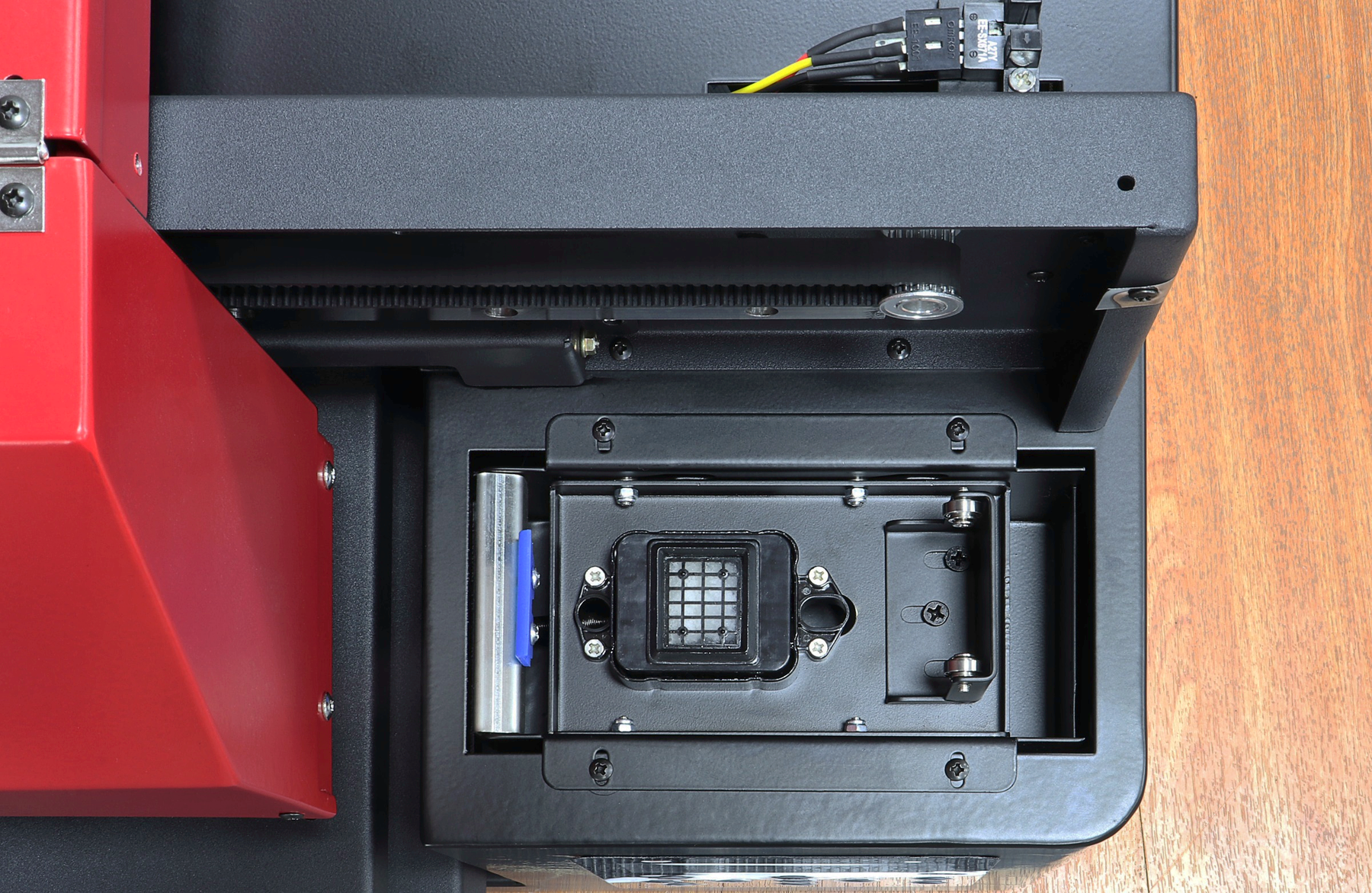

View full image ⤢Printhead maintenance area
Follow cleaning and maintenance training.

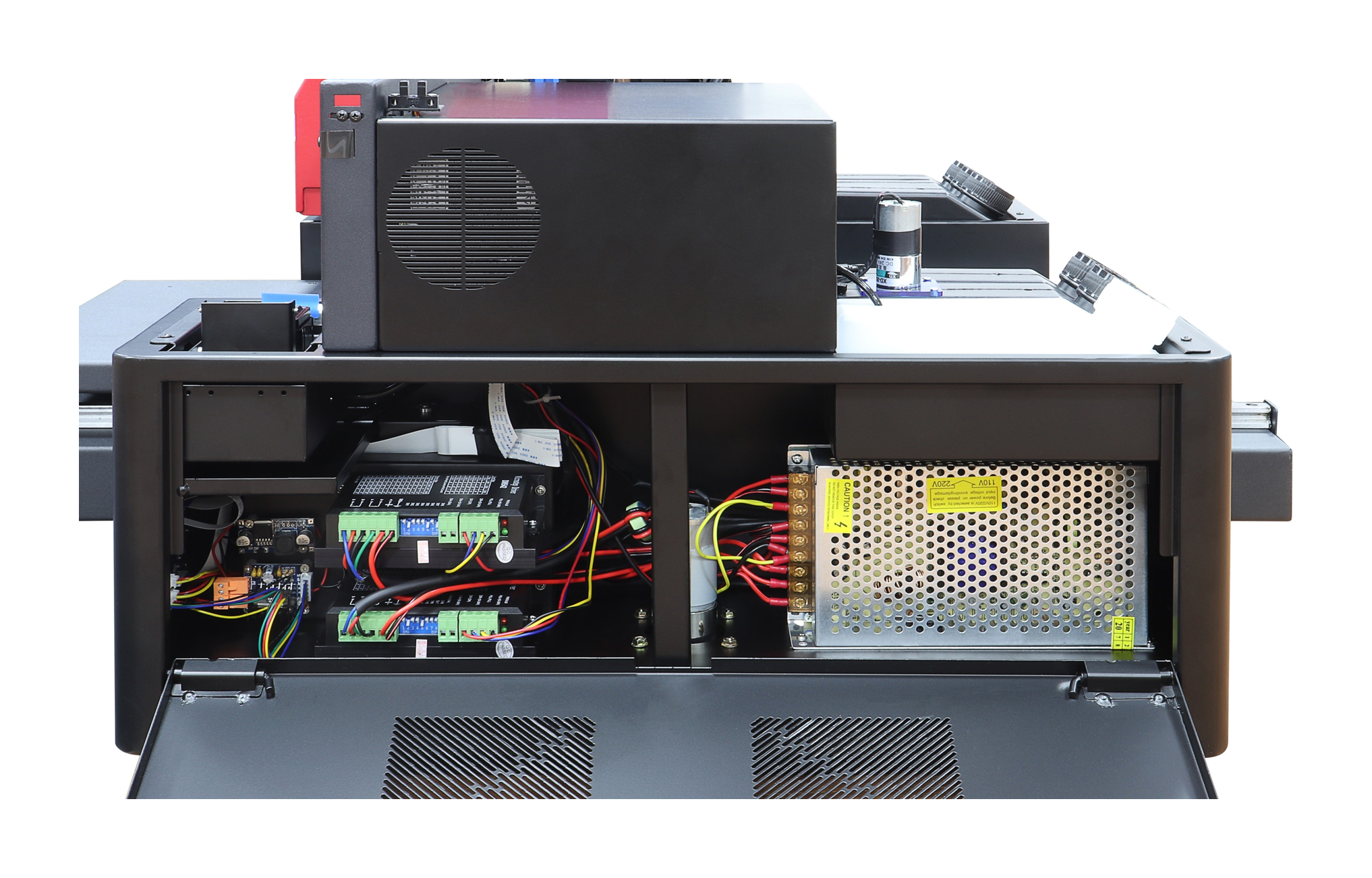

View full image ⤢Power supply and internal wiring
Contact technical service for guidance on internal checks.

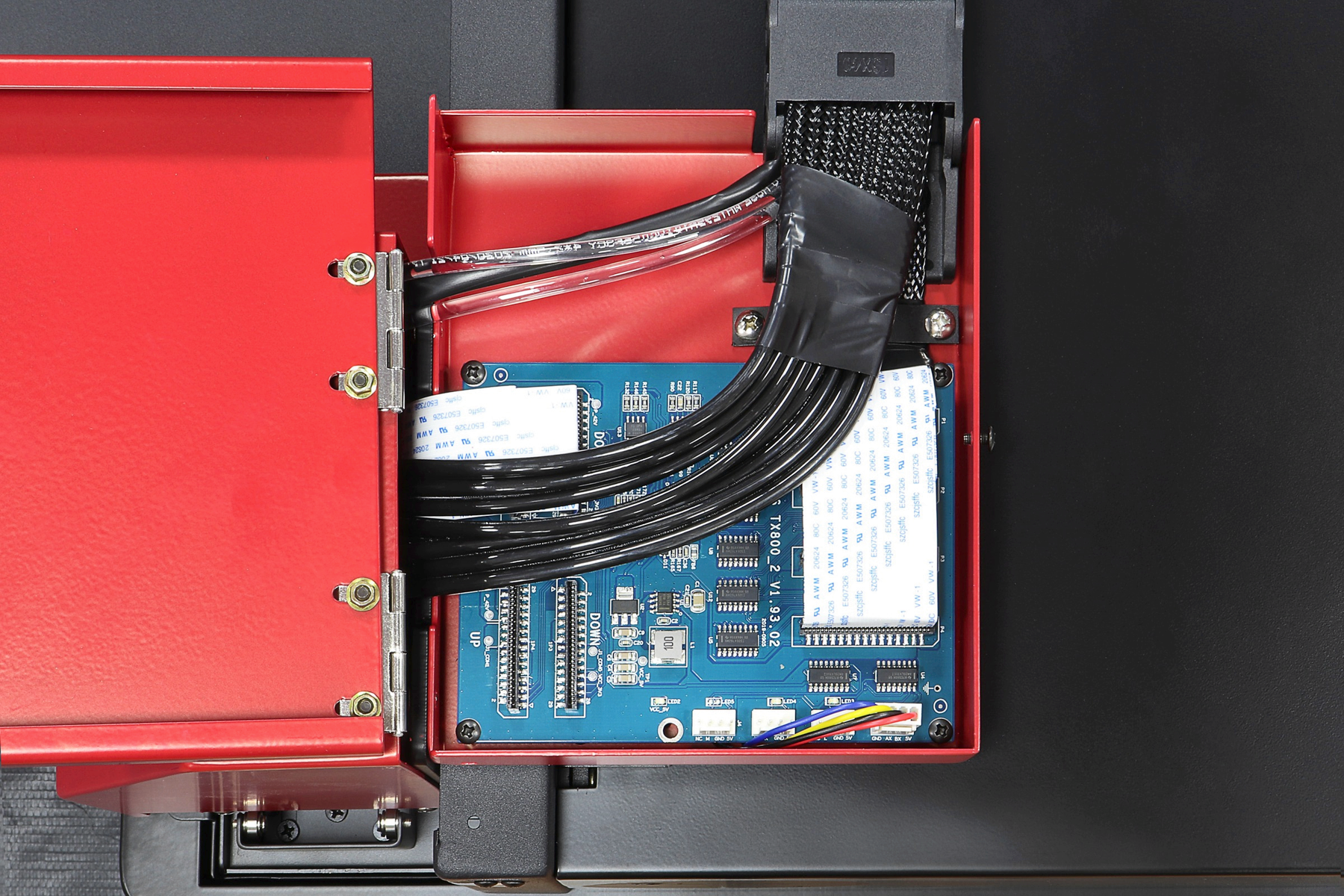

View full image ⤢Control board
Actual internal structure. Follow technician guidance for servicing.
RF-ZZS · Custom phone-case and gift designs
Machine dimensions

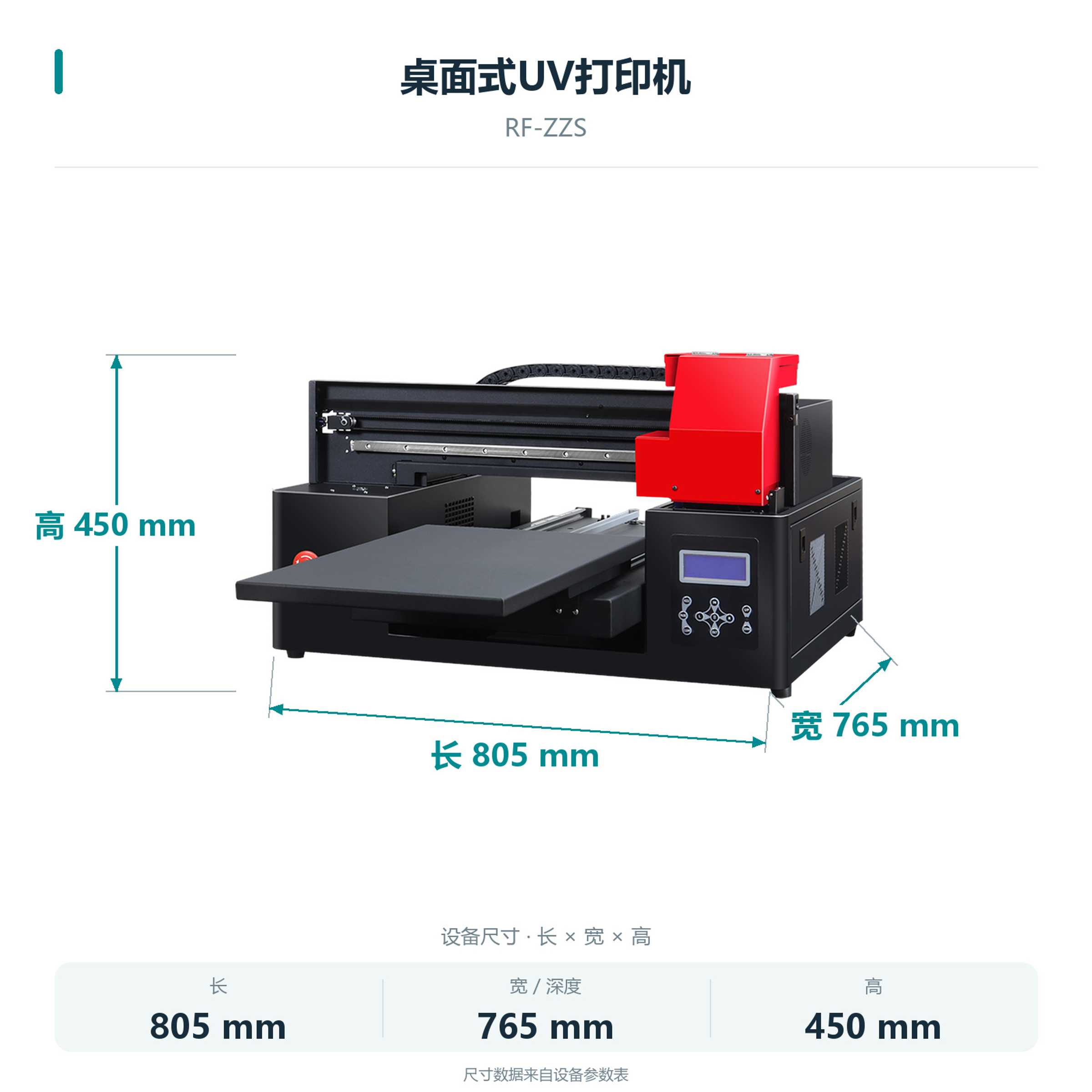

View full image ⤢Machine dimensions
RF-ZZS · Custom phone-case and gift designs
Packing dimensions

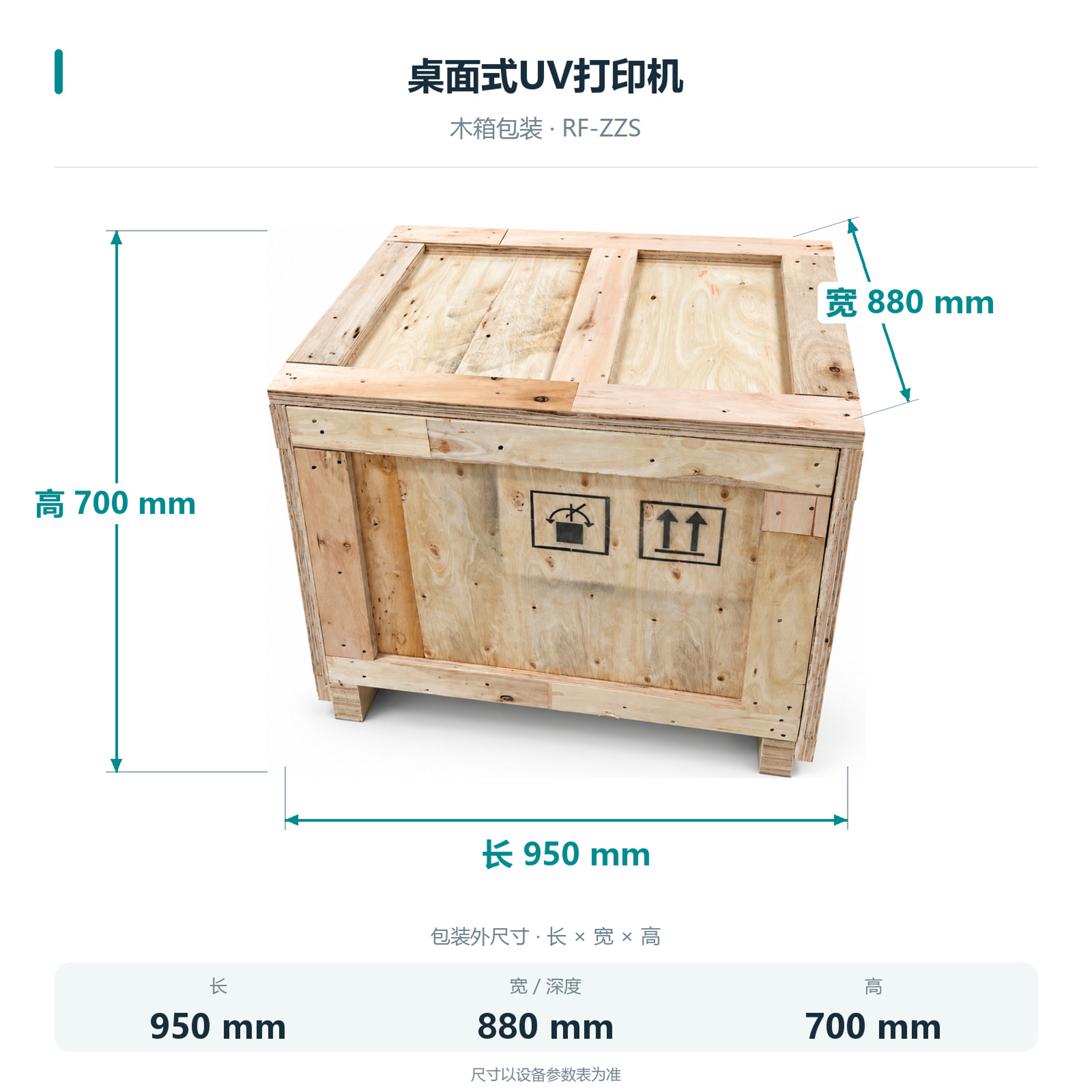

Wooden crate: 950×880×700 mm. Check handling and access space in advance.
View full image ⤢Crate dimensions
RF-ZZS · Custom phone-case and gift designs
Installation
The machine is 805×765×450 mm and weighs 41 kg. Allow room for the PC, loading and platform travel.
Computer and connection
External Windows PC with Gigabit Ethernet.
Platform and holding
Vacuum platform optional. Choose fixtures and holding methods for the items.
Installation training
Remote installation training provided. Check placement and maintenance space first.
RF-ZZS · Custom phone-case and gift designs
Maintenance
Automatic cleaning supported. Follow technical training for printhead and ink-supply maintenance.
Nozzle checks and cleaning
Check nozzles before printing and use cleaning functions as trained.
Media and ink-supply checks
Check item holding, height, ink and connections.
RF-ZZS · Custom phone-case and gift designs
Free sample printing
Send item photos and artwork first. Agree on requirements before sending or bringing samples.
Free sample printing
Sample printing is free with no quantity limit. Customers cover shipping; charges for special materials and custom fixtures are confirmed after assessment.
Request free sample printing →Training and warranty details
Remote setup training is available. One-year warranty from receipt excludes printheads and consumables; customers cover warranty shipping.
View training and warranty →RF-ZZS · Custom phone-case and gift designs
Training and warranty
Remote installation training is provided. Confirm on-site arrangements and fees with technical service.
One-year warranty
One year from receipt, excluding printheads and consumables. Customers cover warranty shipping.
On-site service
Customers cover service and travel costs. Technical service confirms the fees.
