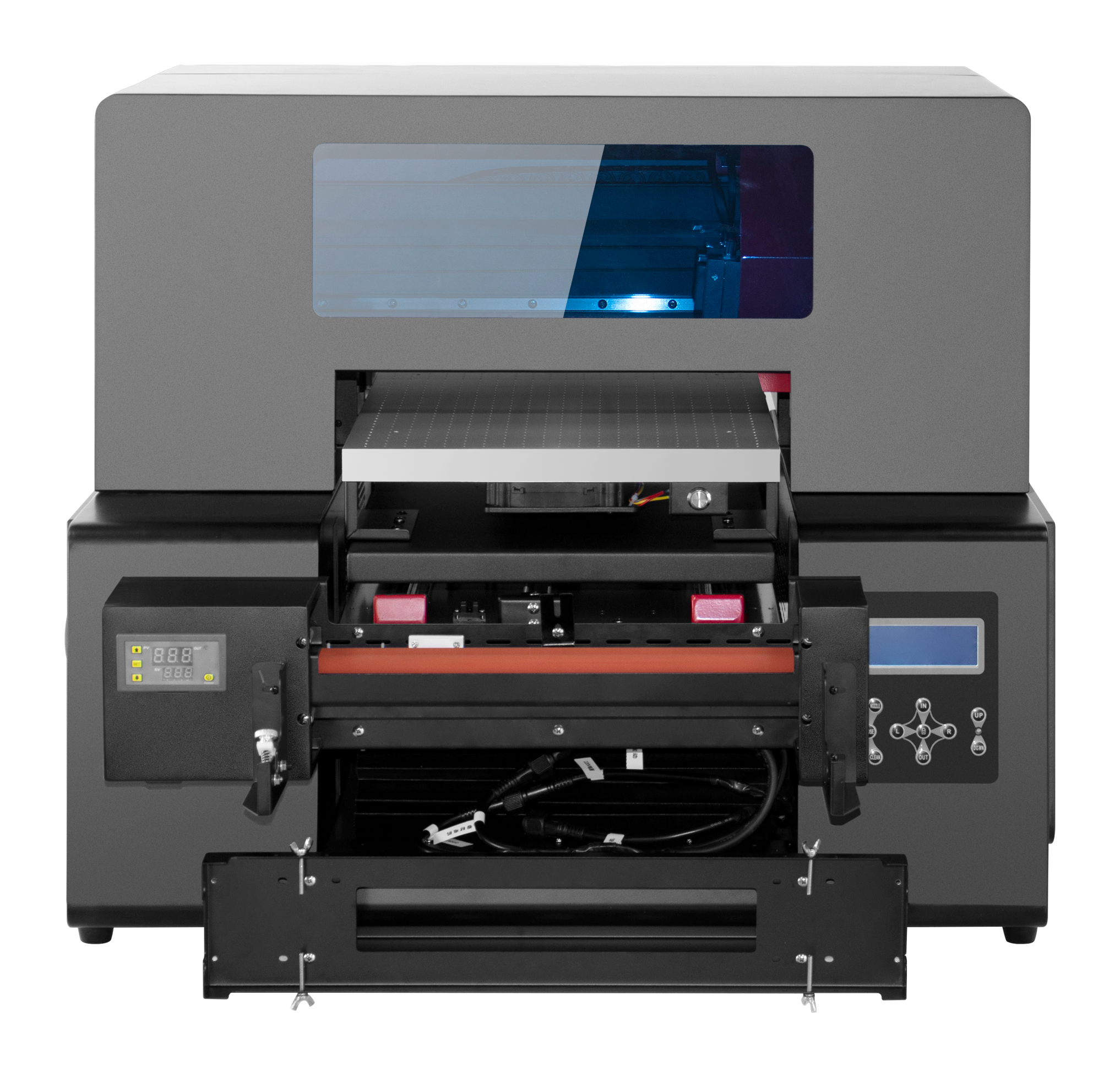

RF-ZZC roll/flatbed crystal-label printer
Print on A film, laminate B film on this machine, then cut and transfer. Roll and flatbed modes require a roll-kit changeover.
Browse all equipment →
RF-ZZC roll/flatbed · AB-film printing
What you can print
Make transfer labels
Mainly for AB transfer film. Laminate, cut, then transfer the design to the item.
Roll mode
330 mm effective print width with continuous roll feeding.
Flatbed mode
330×600 mm print area. Switching between roll and flatbed modes requires removing or fitting the roll kit.
RF-ZZC roll/flatbed · AB-film printing

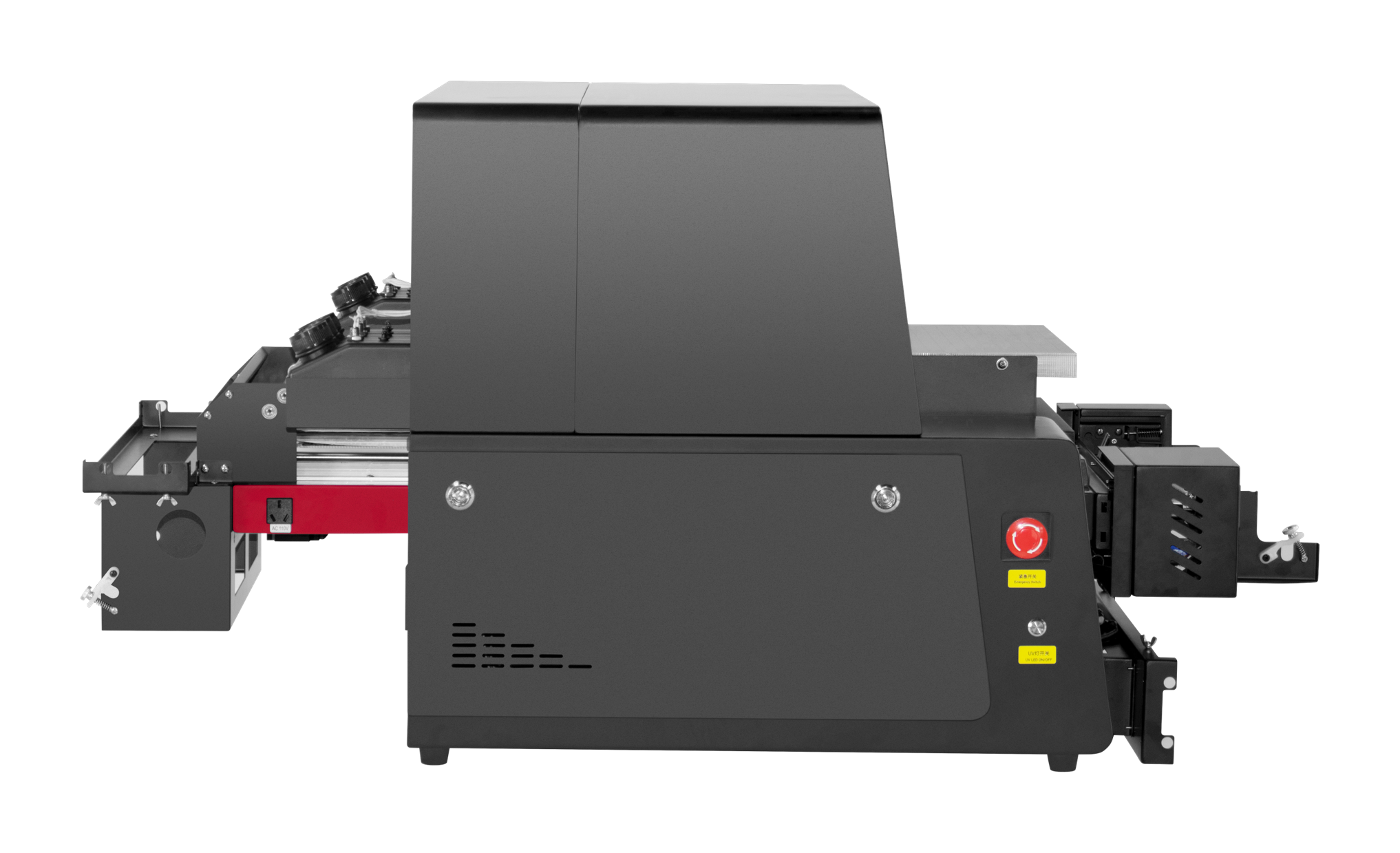

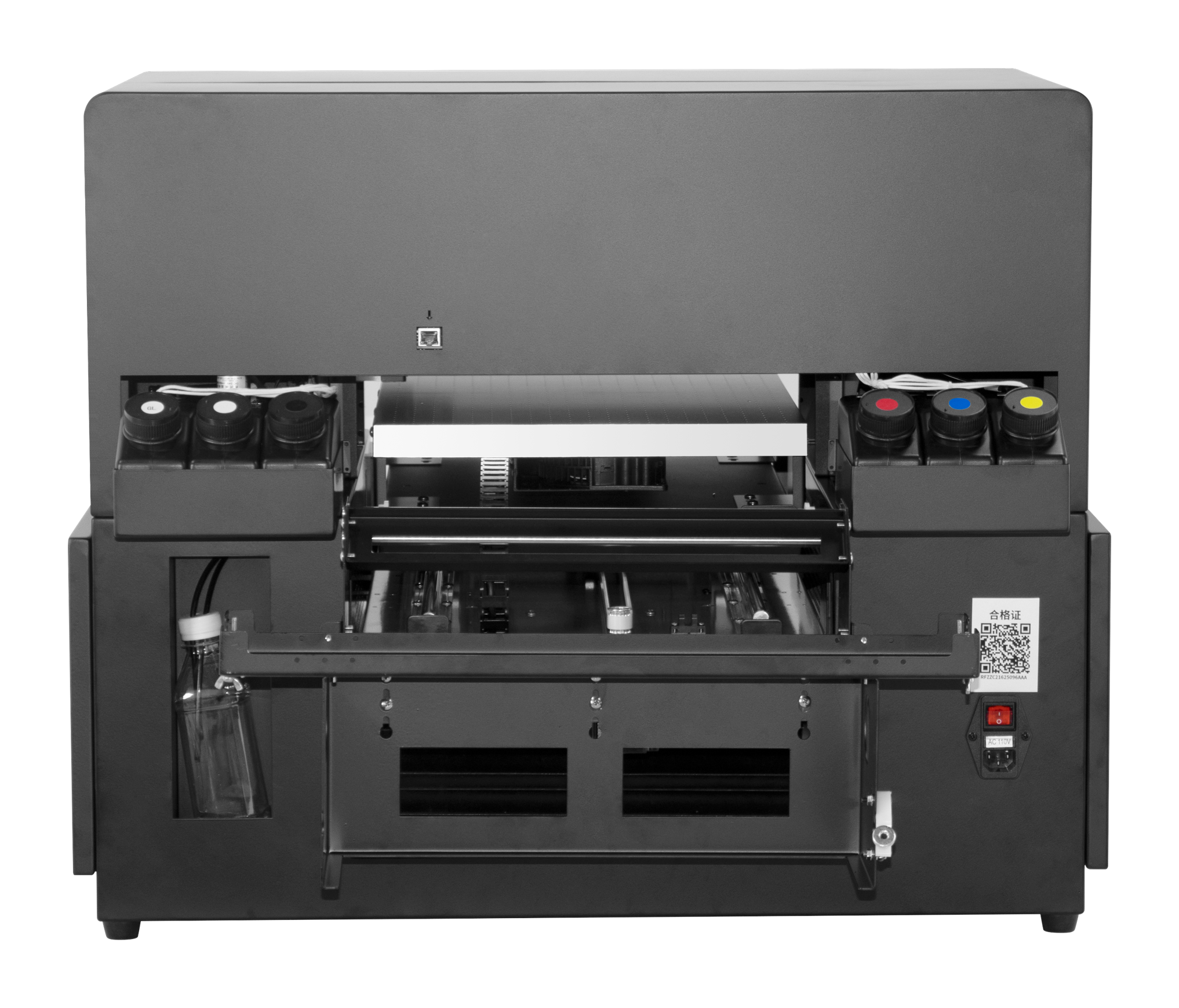

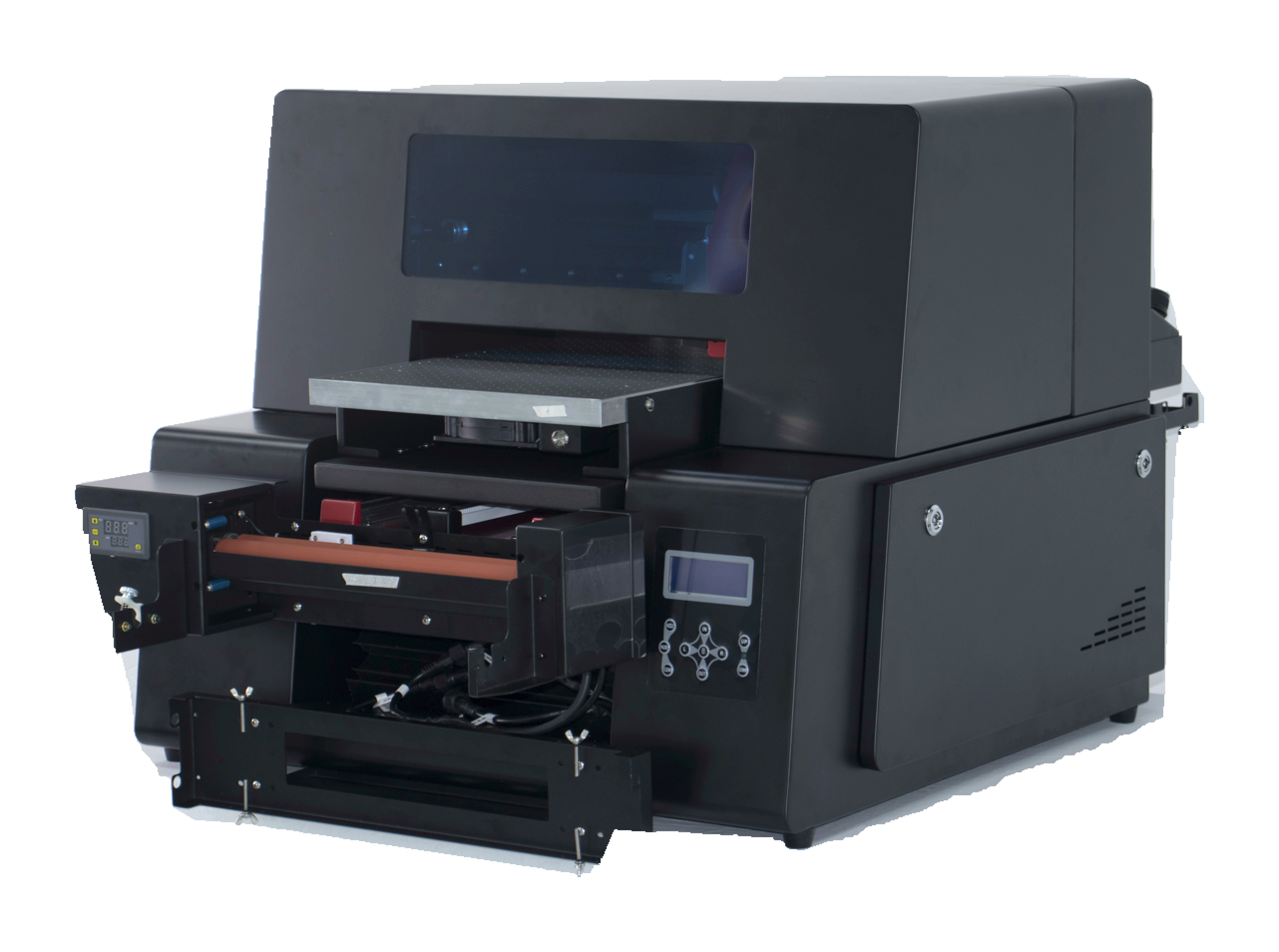

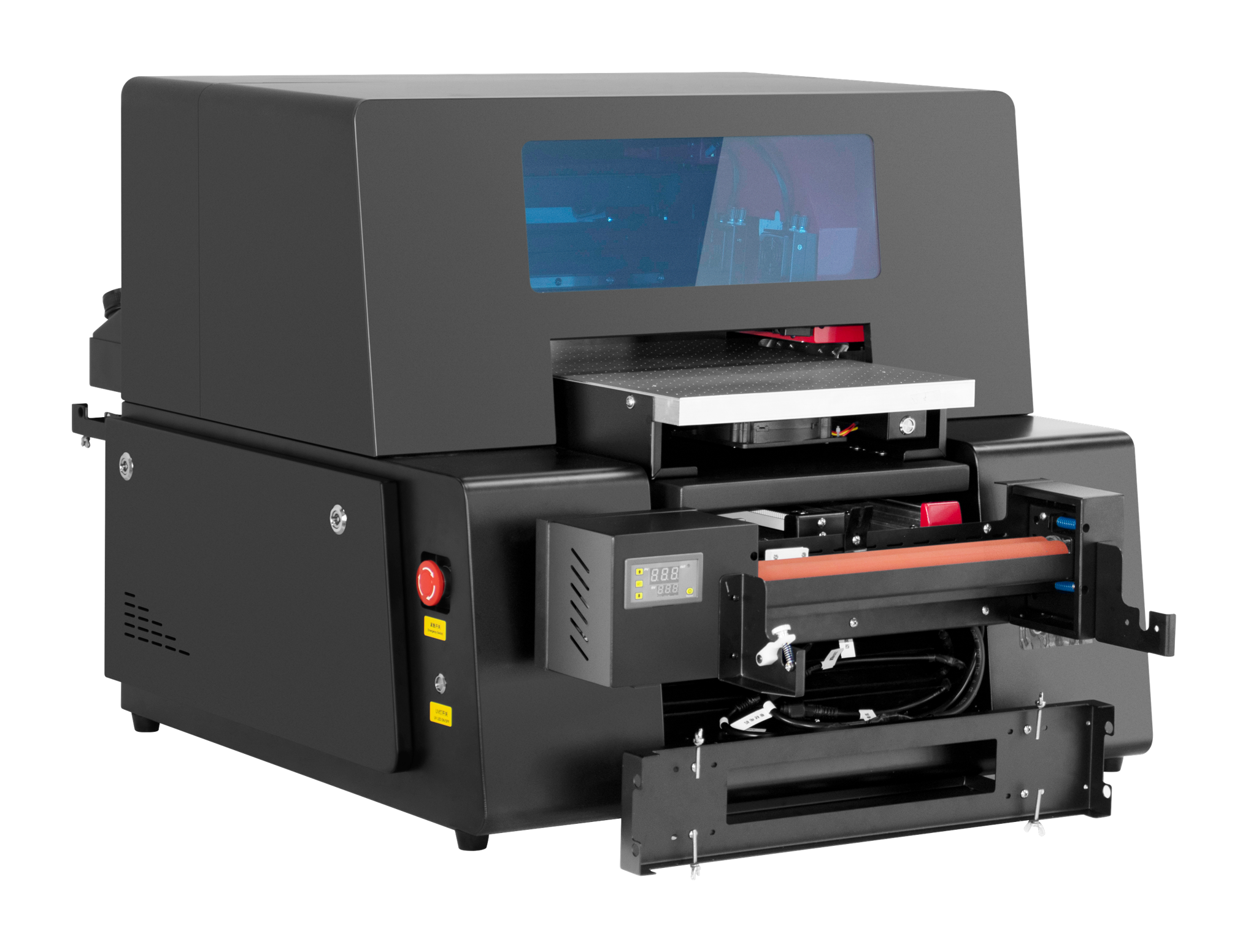

Machine views

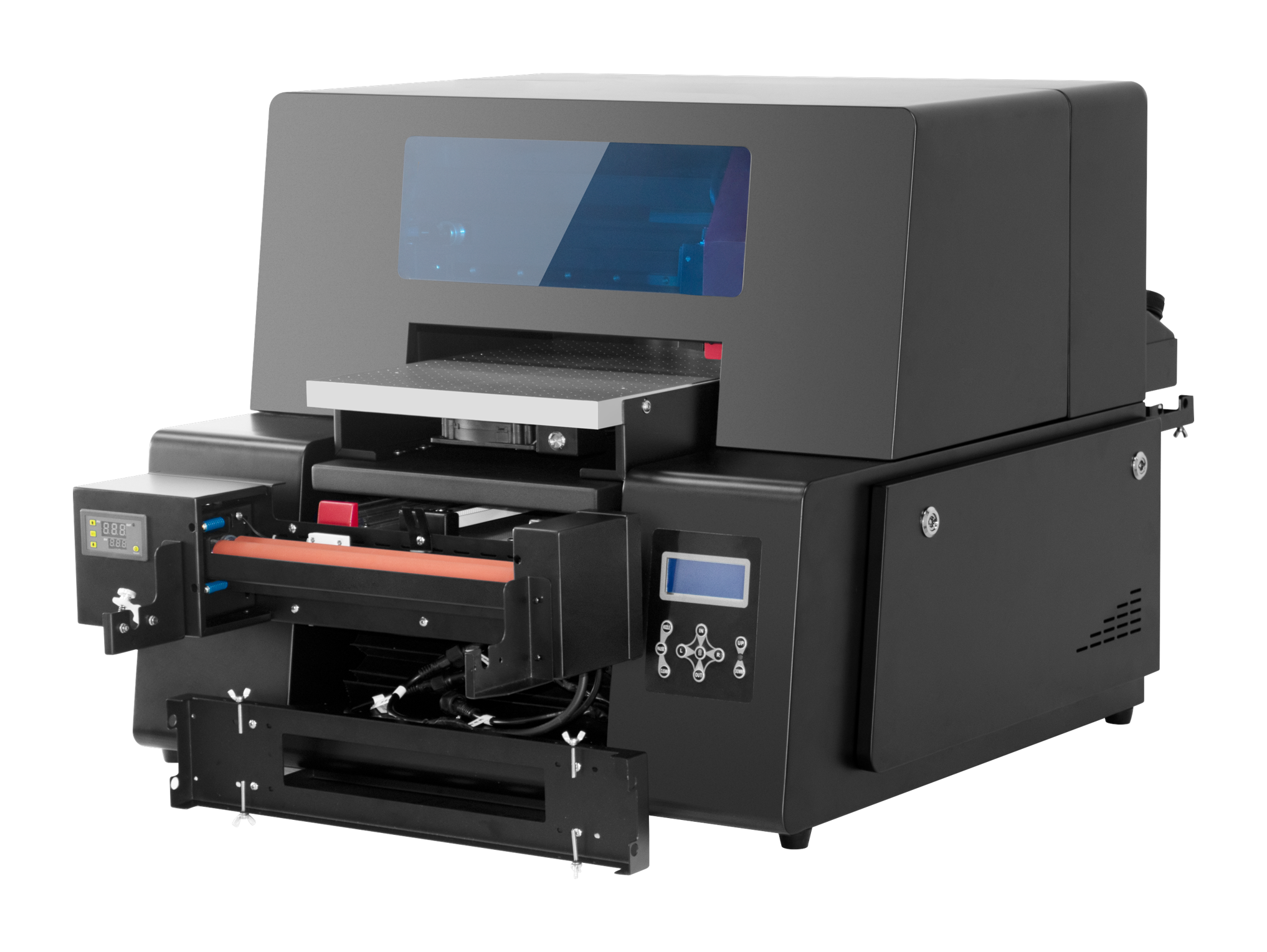

View image ⤢Front view
Select a view above, or open the image to see more detail.
RF-ZZC roll/flatbed · AB-film printing
Key specifications
- Effective print area
- Roll width 330 mm; flatbed 330×600 mm
- Mode change
- Remove or install the roll kit
- Ink and effects
- UV ink: color, white and varnish
- Lamination
- Built in; no separate laminator required
- Platform and height sensing
- Vacuum platform; infrared automatic height sensing
- Computer setup
- External Windows PC, Gigabit Ethernet
- Machine size and net weight
- 800×890×650 mm; 70 kg
- Printhead model
- EPSON-F1080
- Printhead count
- Dual heads
- Printhead maintenance
- Automatic cleaning
- Power supply
- AC 220 V / 110 V, 50–60 Hz
RF-ZZC roll/flatbed · AB-film printing
Print and laminate here, then transfer.
Print A film → Laminate B film on this machine → Cut → Transfer → Peel. No separate laminator needed.
Process illustration
01 / 05
Print A film
Print the artwork on A film using color ink, white ink and varnish.
RF-ZZC roll/flatbed · AB-film printing
Machine details
These close-ups from the machine photos show the table and roll kit.
View full image ⤢Print platform
Photo close-up. The vacuum table uses suction to help hold flat material.
View full image ⤢Machine controls
Photo close-up. Prepare artwork files on an external Windows PC.
View full image ⤢Roll kit
Photo close-up. Follow setup training to fit or remove the kit when changing modes.
RF-ZZC roll/flatbed · AB-film printing

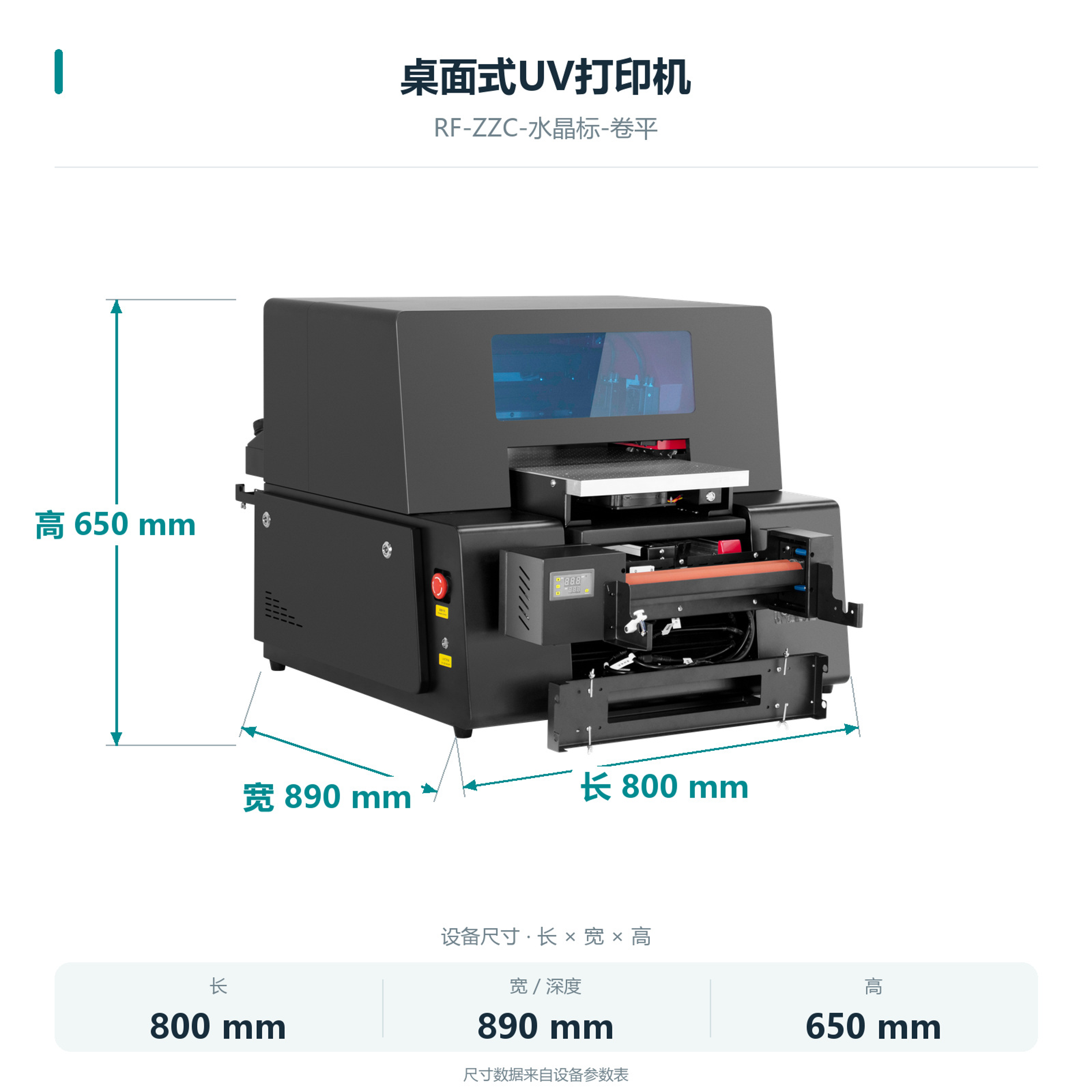

Machine dimensions
View full image ⤢Machine dimensions
RF-ZZC roll/flatbed · AB-film printing
Packing dimensions

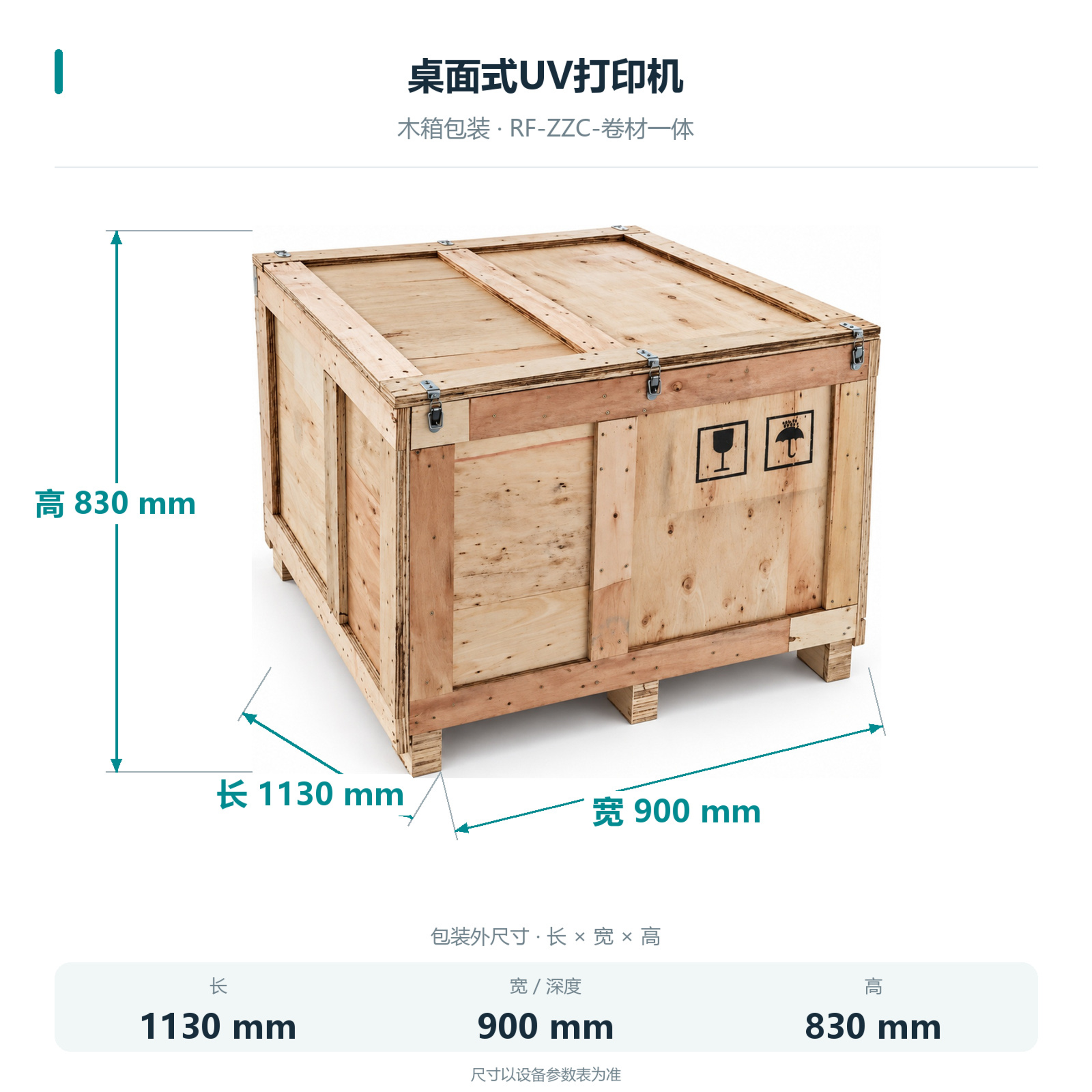

Packed dimensions: 1130×900×830 mm.
View full image ⤢Crate dimensions
RF-ZZC roll/flatbed · AB-film printing
Installation
The body is 800×890×650 mm. Allow room for film handling, kit changeover, operation and maintenance.
External Windows computer
Connect an external Windows PC by network cable. The on-machine control screen operates the equipment.
Integrated lamination
Lamination is built in; no separate laminator is needed.
Roll-kit changeover
Follow training to fit or remove and secure the kit before changing modes. Check it before printing.
RF-ZZC roll/flatbed · AB-film printing
Maintenance
Follow technical training for printheads, ink supply and film handling.
Automatic head cleaning
Follow training for cleaning and daily checks.
Film and kit checks
Check film loading and kit attachment before printing.
RF-ZZC roll/flatbed · AB-film printing
Free sample printing
Send item photos and artwork first. Agree on requirements before sending or bringing samples.
Free sample printing
Sample printing is free with no quantity limit. Customers cover shipping; charges for special materials and custom fixtures are confirmed after assessment.
Request free sample printing →Training and warranty details
Remote setup training is available. One-year warranty from receipt excludes printheads and consumables; customers cover warranty shipping.
View training and warranty →RF-ZZC roll/flatbed · AB-film printing
Training and warranty
Remote installation training is provided. Confirm on-site arrangements and fees with technical service.
One-year warranty
One year from receipt, excluding printheads and consumables. Customers cover warranty shipping.
On-site service
Customers cover service and travel costs. Technical service confirms the fees.
