RF-CF30S · Dual-head DTF printer
CF30S enhanced dual-head printer
Make transfer designs for T-shirts, hoodies and other garments. CF30S prints the film; separate equipment applies powder and dries it, then a heat press transfers it to the garment.
Browse all equipment →
RF-CF30S · Dual-head DTF printer
What you can print
Custom apparel
Create designs for T-shirts, hoodies and other apparel.
Textile gifts
Test actual materials for bags, cushions and other textile gifts.
Plan the whole process
After printing, the film needs powdering, drying and heat pressing. Confirm the equipment, film and fabric first.
RF-CF30S · Dual-head DTF printer
Machine views

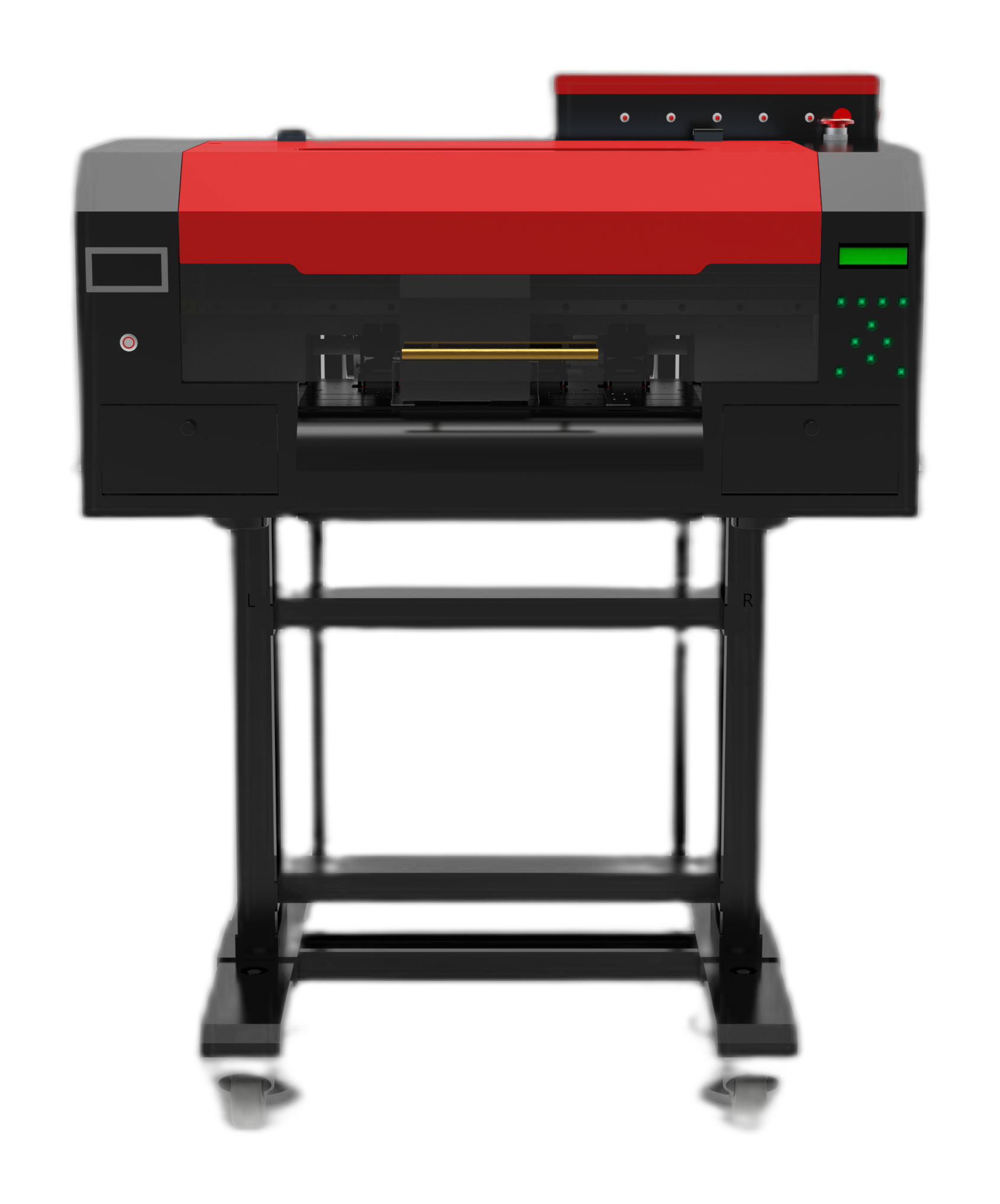

View image ⤢Front view
Select a view above, or open the image to see more detail.
RF-CF30S · Dual-head DTF printer
Key specifications
- Effective print width
- ≤330 mm
- Ink and colors
- DTF ink, CMYK + white
- Listed print speed
- 8Pass: approximately 3 m²/h; results depend on artwork and settings
- Computer setup
- External Windows PC, Gigabit Ethernet
- Winding
- Automatic sensor-controlled winding
- Machine size
- 820 × 637 × 1090 mm
- Net weight
- 35 kg
- Printhead model
- EPSON-F1080
- Printhead count
- Dual heads
- Printhead maintenance
- Automatic cleaning
- Power supply
- AC 220 V / 110 V, 50–60 Hz
RF-CF30S · Dual-head DTF printer
Five steps from printed film to garment.
CF30S prints the film. Powdering/drying equipment and a heat press are supplied separately.
01 / 05
Prepare artwork and film
Use the actual garment or fabric to confirm the artwork, film and ink.
RF-CF30S · Dual-head DTF printer
Machine details

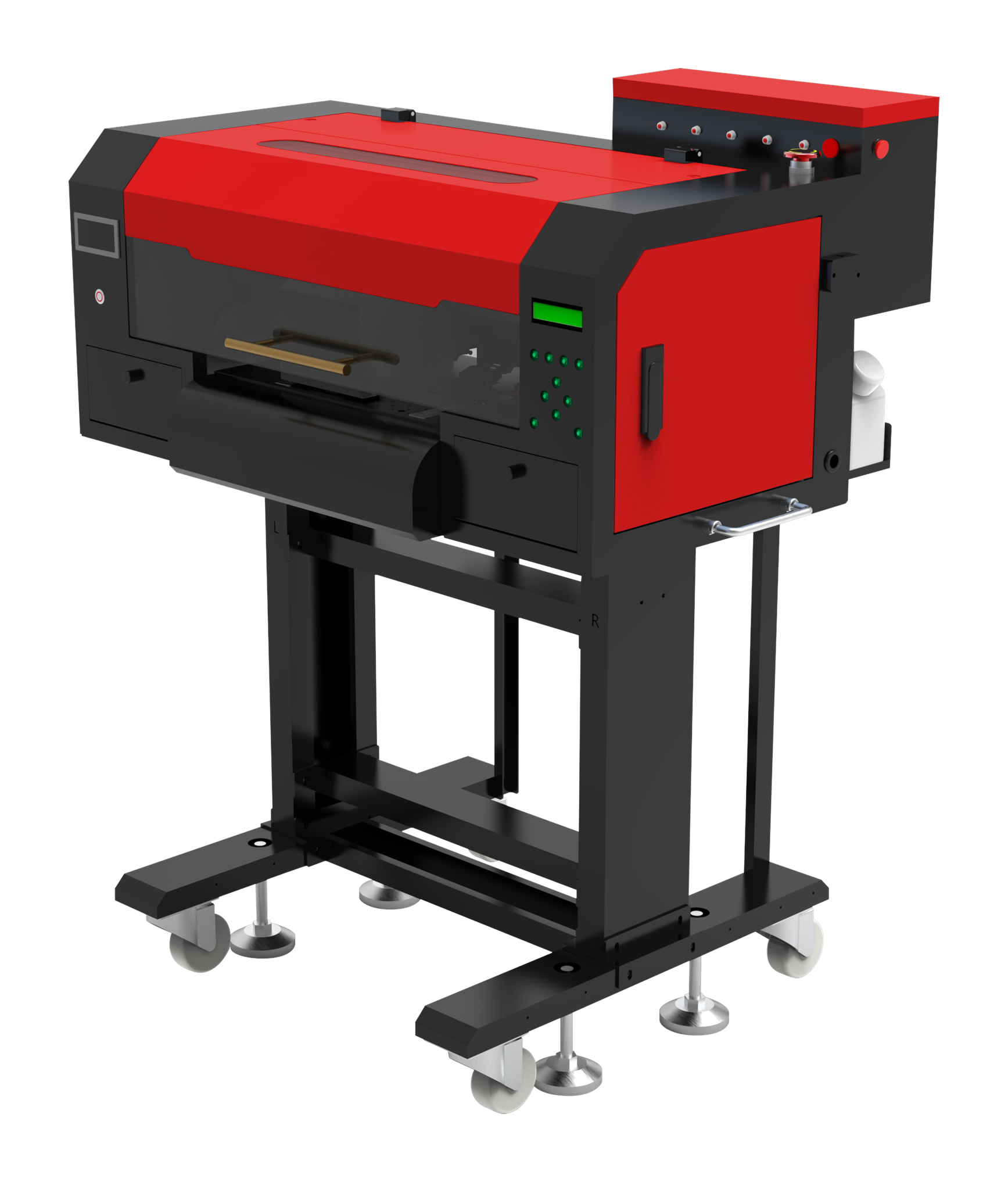

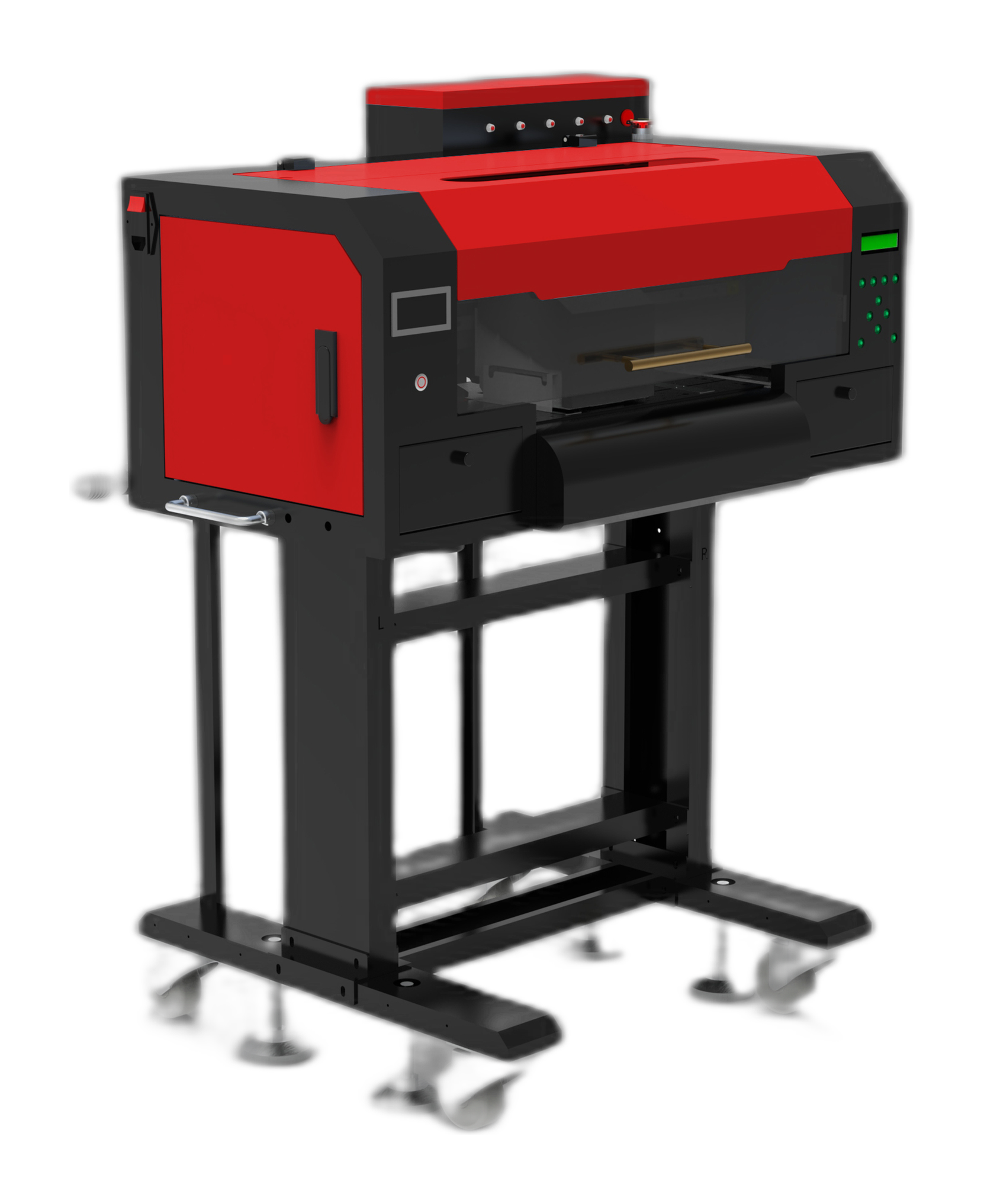

View full image ⤢Front film-feed area
Enlarged front product image. Platform suction is adjustable; follow technical training.

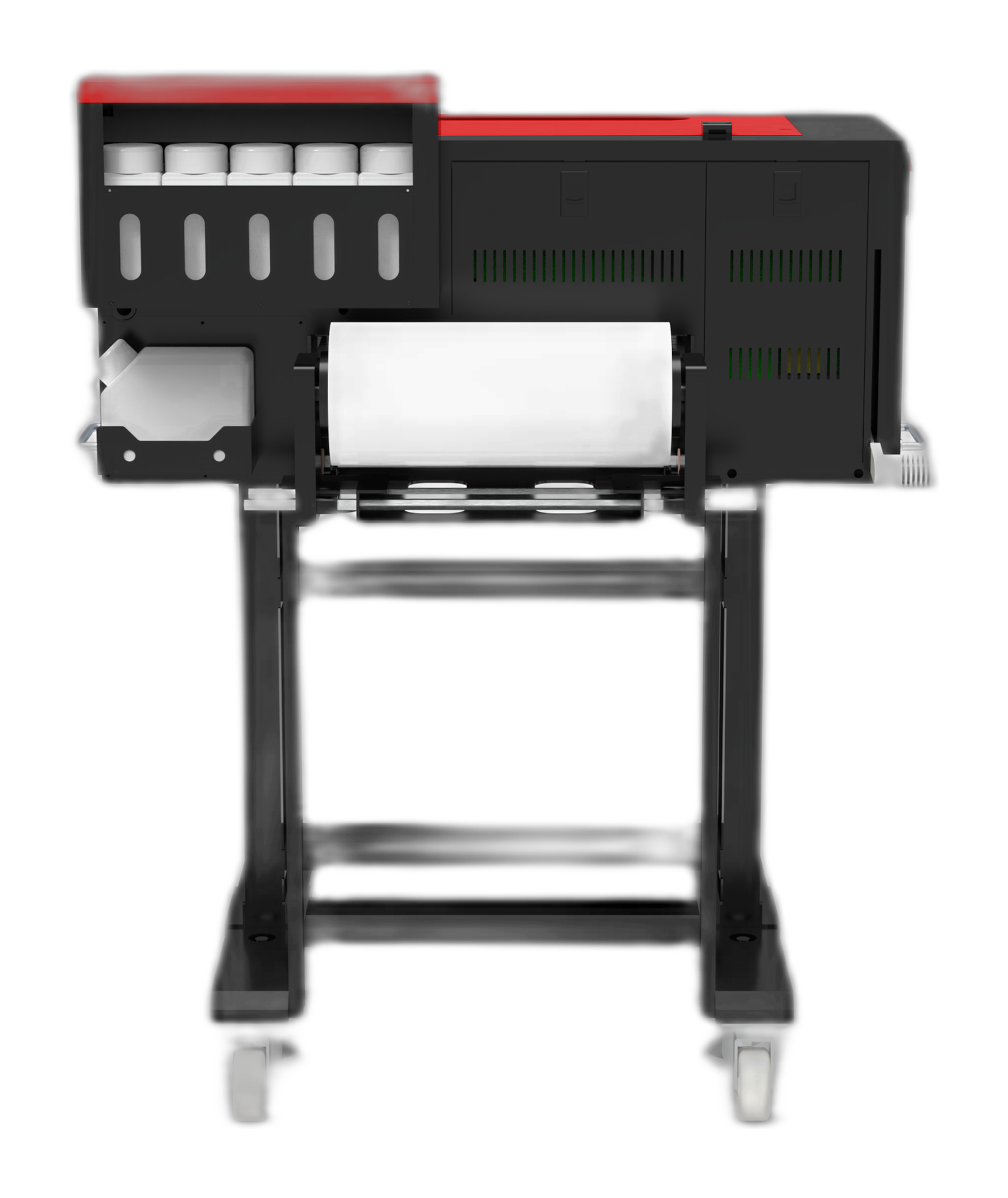

View full image ⤢Rear ink supply
Rear-photo close-up showing the ink-supply components.
View full image ⤢Roll-media area
Rear-photo close-up showing the roll position. The machine supports automatic sensor-controlled take-up.
RF-CF30S · Dual-head DTF printer

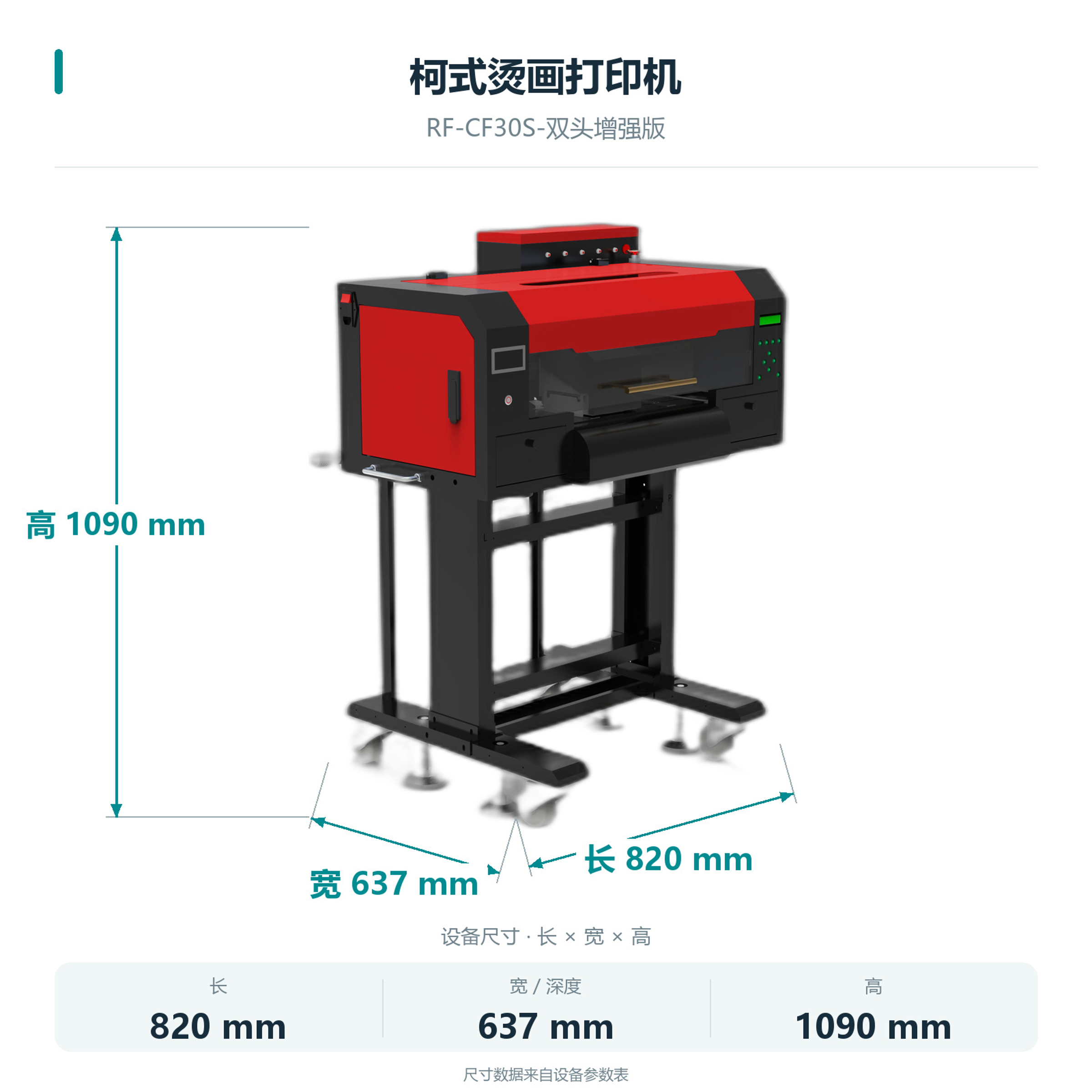

Machine dimensions
View full image ⤢Machine dimensions
RF-CF30S · Dual-head DTF printer

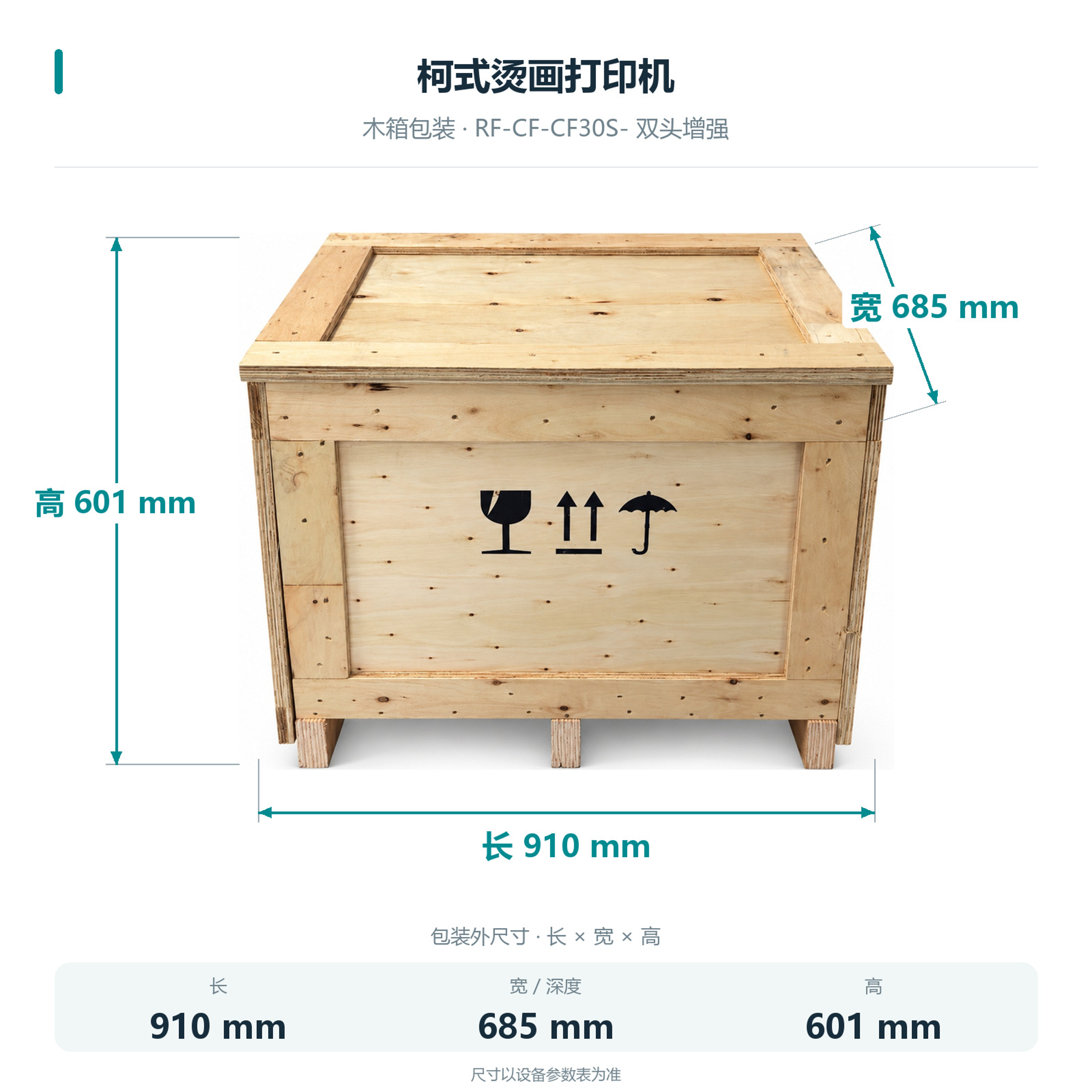

Packing dimensions
Dimensions shown are for packaging after disassembly.
View full image ⤢Crate dimensions after disassembly
Packed after stand removal: 910×685×601 mm.
RF-CF30S · Dual-head DTF printer
Installation
The body is 820×637×1090 mm. Allow space for film handling, operation, maintenance and finishing equipment.
External Windows computer
Requires an external Windows PC connected via Gigabit Ethernet.
Finishing equipment
Confirm powdering/drying equipment, heat-transfer equipment and materials for your setup.
Operating environment
Indoor use, with listed conditions of 15–30°C and 35%–65% humidity.
RF-CF30S · Dual-head DTF printer
Maintenance
Maintain printheads, ink supply and winding according to technical service training.
Automatic printhead cleaning
Automatic cleaning is listed; follow training for routine maintenance.
Continuous ink supply
Uses continuous negative-pressure ink supply. Confirm the appropriate ink.
RF-CF30S · Dual-head DTF printer
Free sample printing
Send item photos and artwork first. Agree on requirements before sending or bringing samples.
Free sample printing
Sample printing is free with no quantity limit. Customers cover shipping; charges for special materials and custom fixtures are confirmed after assessment.
Request free sample printing →Training and warranty details
Remote setup training is available. One-year warranty from receipt excludes printheads and consumables; customers cover warranty shipping.
View training and warranty →RF-CF30S · Dual-head DTF printer
Training and warranty
Remote installation training is provided. Confirm on-site arrangements and fees with technical service.
One-year warranty
One year from receipt, excluding printheads and consumables. Customers cover warranty shipping.
On-site service
Customers cover service and travel costs. Technical service confirms the fees.
