RF-ZZE food version · Custom bakery designs
RF-ZZE food printer
Print on cookies, macarons and other foods within 310×500 mm. Four-color food-grade ink; no curing required.
Browse all equipment →
RF-ZZE food version · Custom bakery designs
What you can print
Sample the artwork size, food surface and placement using actual items.
Cookies and macarons
Print names, greetings or event designs for gift boxes and on-site customization.
Cakes and pastries
Confirm the usable print area from food height and surface condition.
Shop customization orders
Optional mobile customization software lets customers preview and order. Staff then load the food and print.
RF-ZZE food version · Custom bakery designs

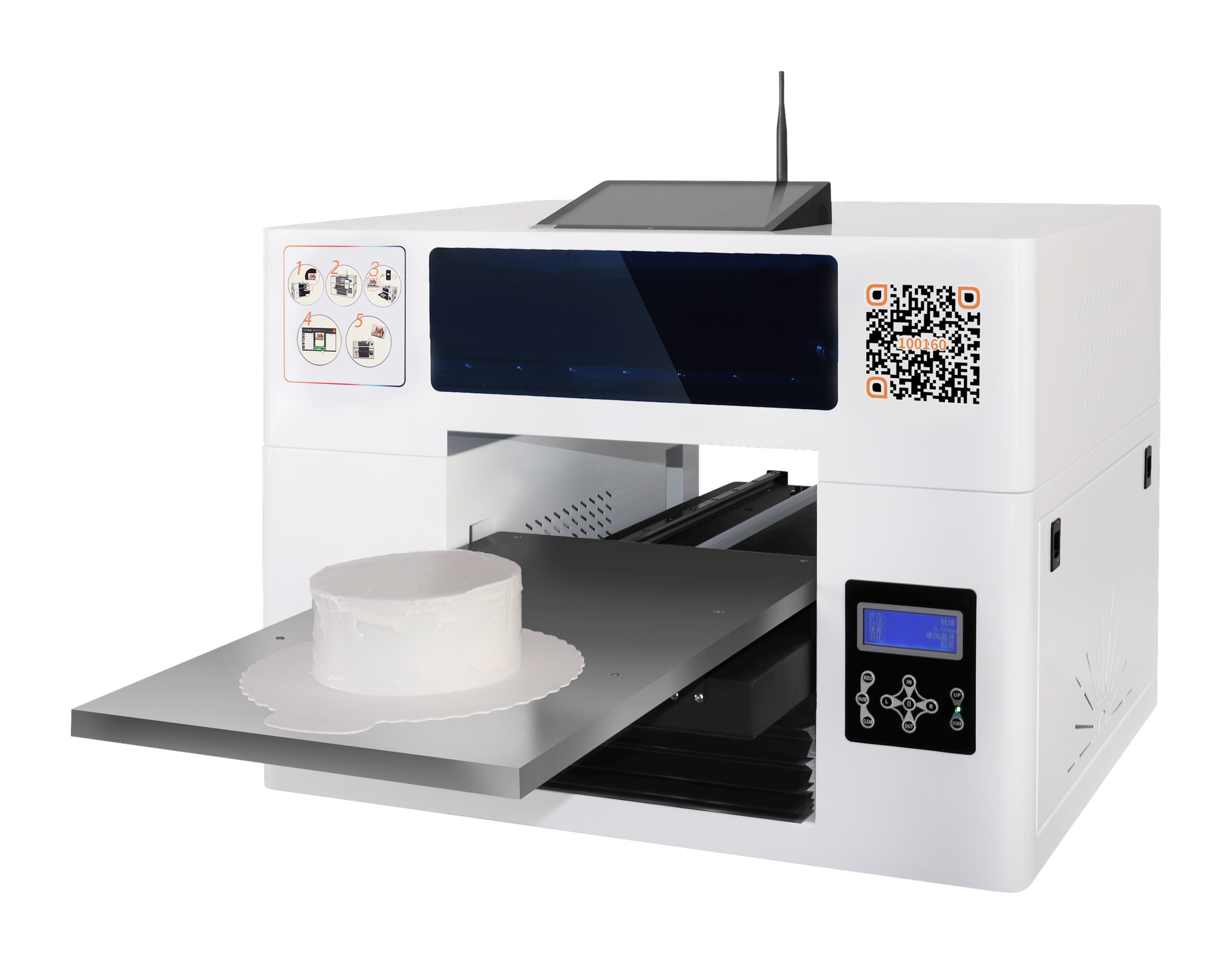

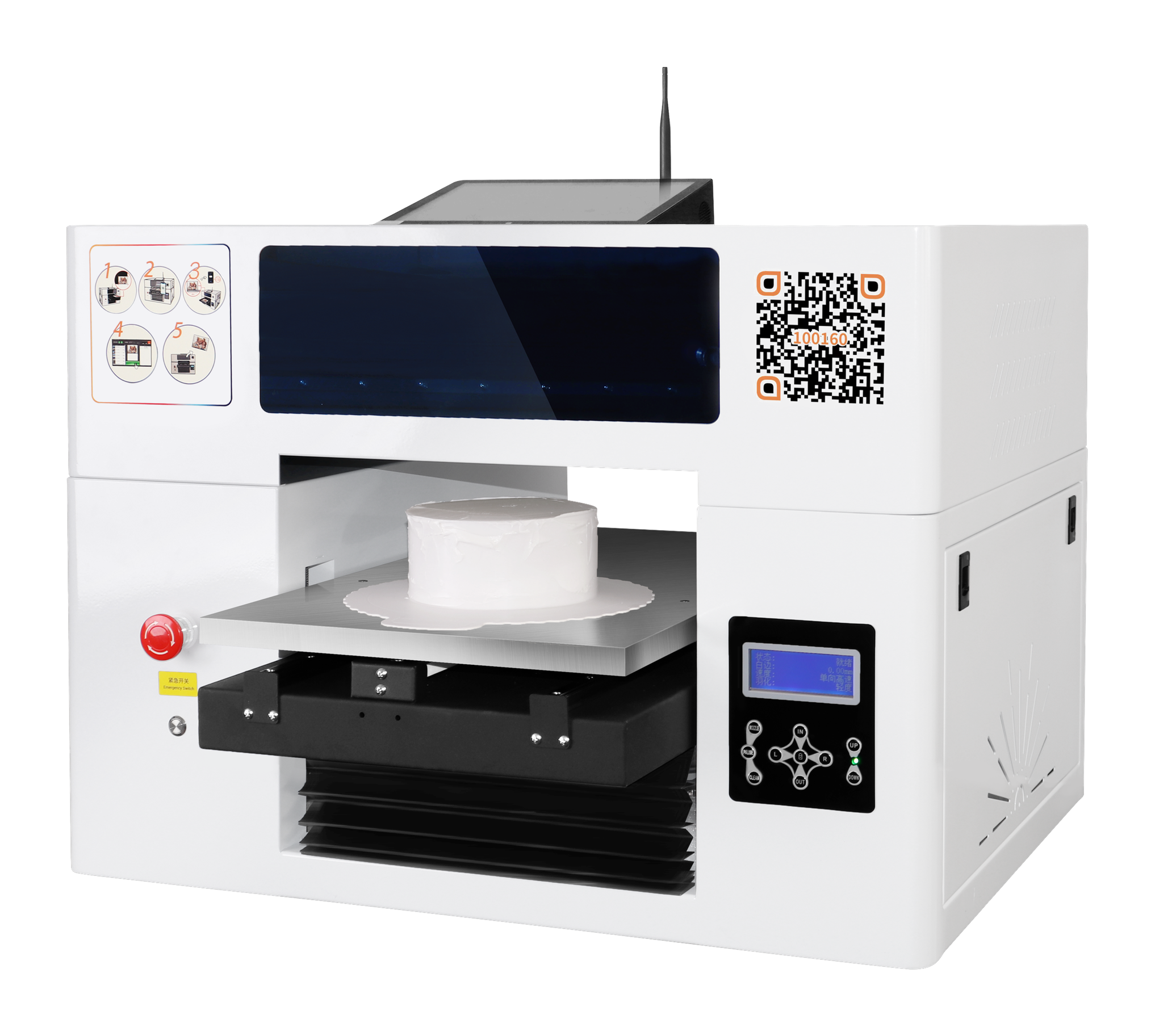

Machine views
The plain white cake shows how food is loaded; it is not a printed sample.
View image ⤢Front view
Select a view above, or open the image to see more detail.
RF-ZZE food version · Custom bakery designs
See cookies and macarons printed by this machine.
These frames come from actual printing videos of this machine. Test your food and artwork with actual items.
View full image ⤢Printed cookie
Actual machine print; original video frame.
View full image ⤢Printed macaron
Actual machine print; original video frame.
RF-ZZE food version · Custom bakery designs
Use your existing PC or add a touch computer?
The image shows the computer-equipped version. The version without a computer needs an external Windows PC; choose mobile customization software as needed.
Use an external computer
Use an external Windows PC with the version without a built-in computer.
Optional 10.1-inch touch computer
Select orders on the computer-equipped version. Configure cloud software for your needs.
RF-ZZE food version · Custom bakery designs
Key specifications
- Print area
- 310×500 mm
- Food height
- 0–200 mm; confirm with actual food and loading
- Ink and colors
- Food-grade ink; four-color CMYK
- Curing
- No curing required
- Height sensing and adjustment
- Infrared-triggered automatic descent; automatic / manual adjustment
- Computer and ordering
- External Windows PC / optional 10.1-inch touch computer; H5 software configured as needed
- Machine size and net weight
- 765×800×618 mm; 62 kg
- Printhead model
- EPSON-F1080
- Printhead count
- Single head, four colors, drop-on-demand
- Printhead maintenance
- Automatic / manual cleaning
- Power supply
- AC 220 V / 110 V, 50–60 Hz
RF-ZZE food version · Custom bakery designs
Confirm food dimensions, then design and order.
This workflow uses optional mobile customization software. Set the artwork area (canvas) to the food dimensions, or choose a template matched to the item.
01 / 07
Confirm food dimensions
Test the print-surface dimensions, food height and placement with actual items first.
RF-ZZE food version · Custom bakery designs
How do phone orders reach the printer?
These screen references come from this machine’s demonstration video. Configure templates, payment and cloud software for the project.

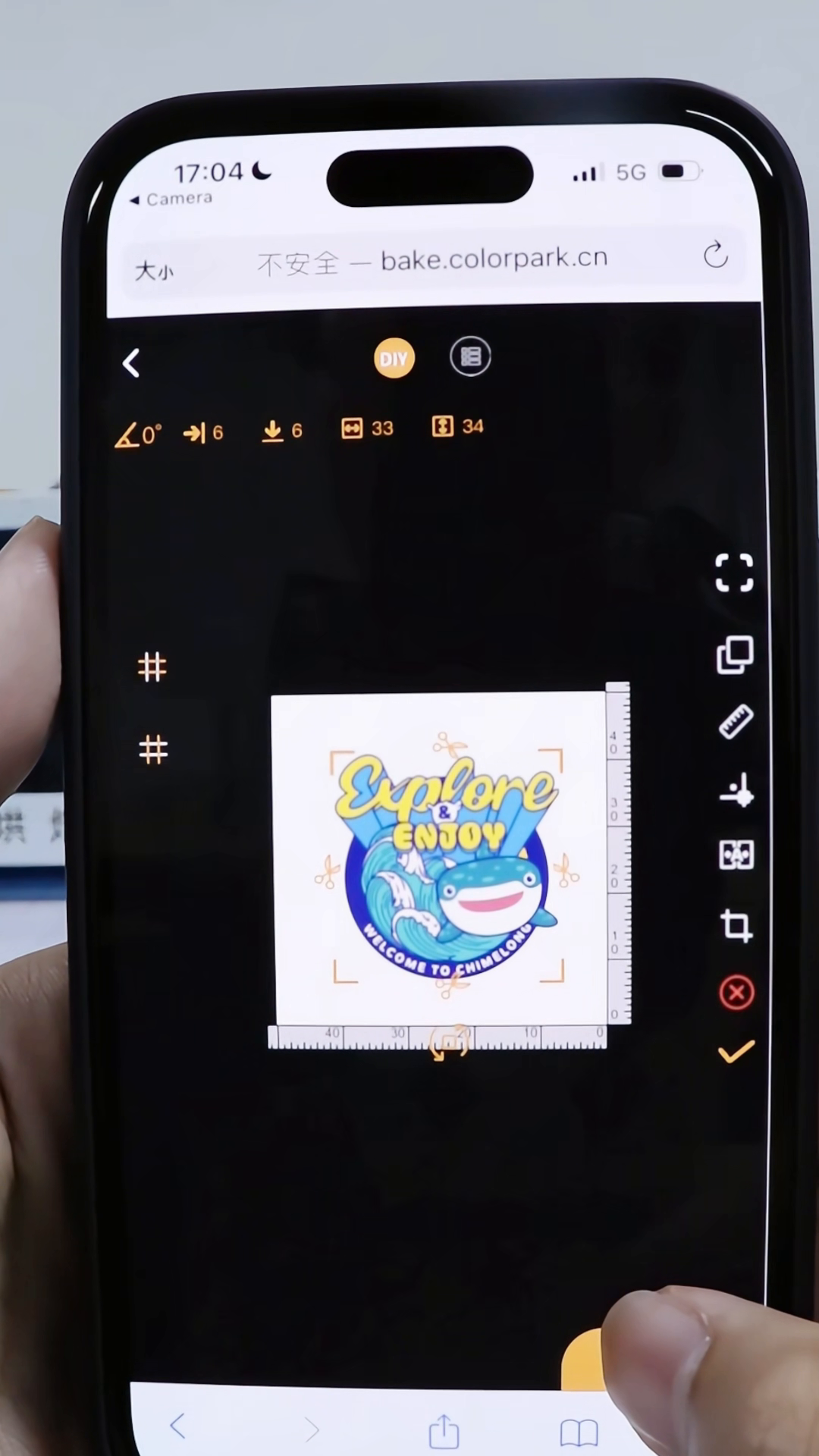

Mobile setup and design
Set the artwork area to match the food dimensions, design and preview it.

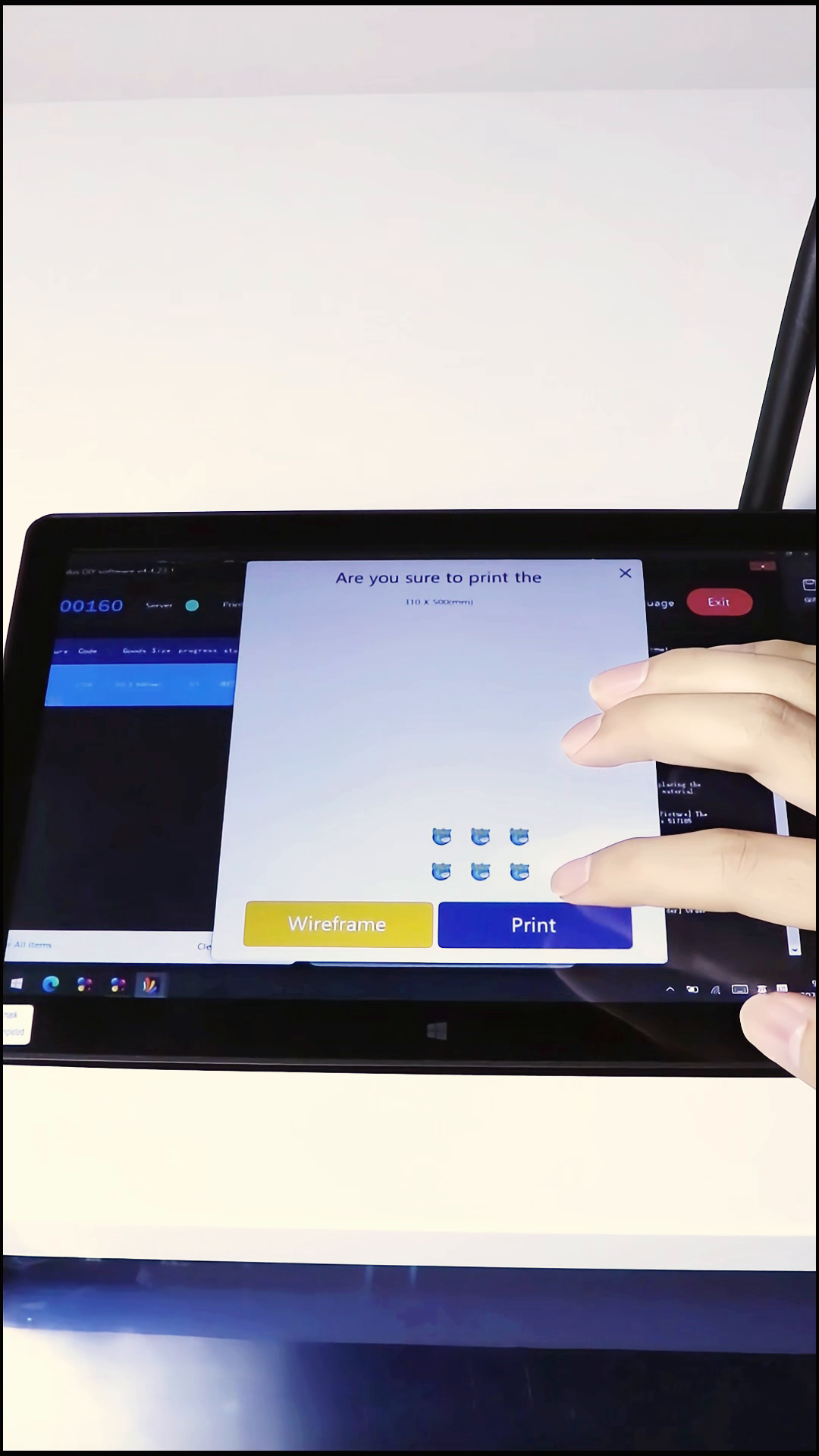

Machine ordering and printing
Load manually, select the order and check artwork placement before printing.
RF-ZZE food version · Custom bakery designs
Machine details
Structure images enlarge the original product photo. Loading is shown in an actual print video.

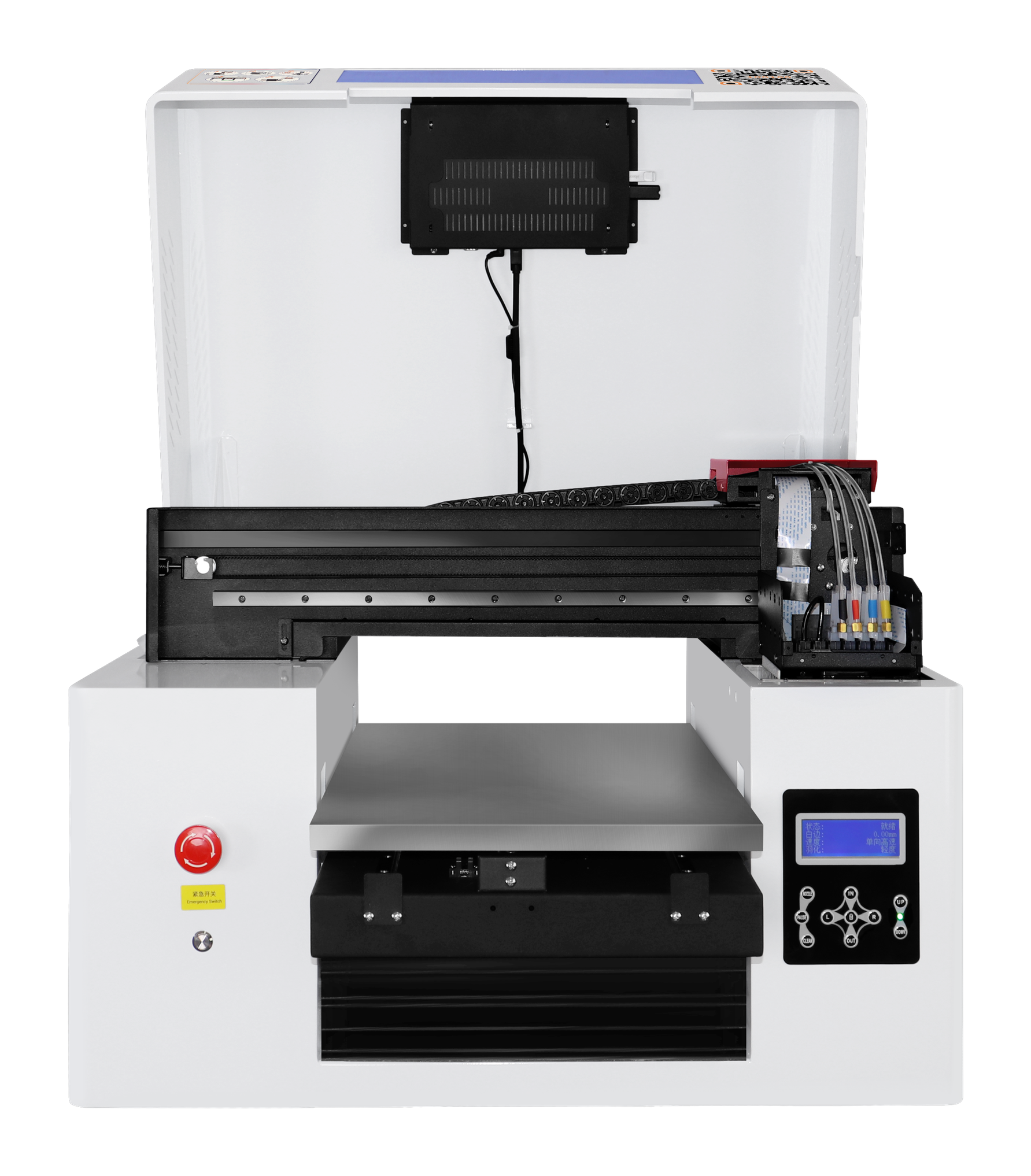

View full image ⤢Printing rail
Enlarged original photo.
View full image ⤢Printhead and ink supply
Food-grade CMYK ink. Follow cleaning and maintenance training.
View full image ⤢Optional on-machine computer
Enlarged original photo; computer-equipped configuration shown.
View full image ⤢Manual food loading
Actual video frame. Load at the tested positions.
RF-ZZE food version · Custom bakery designs

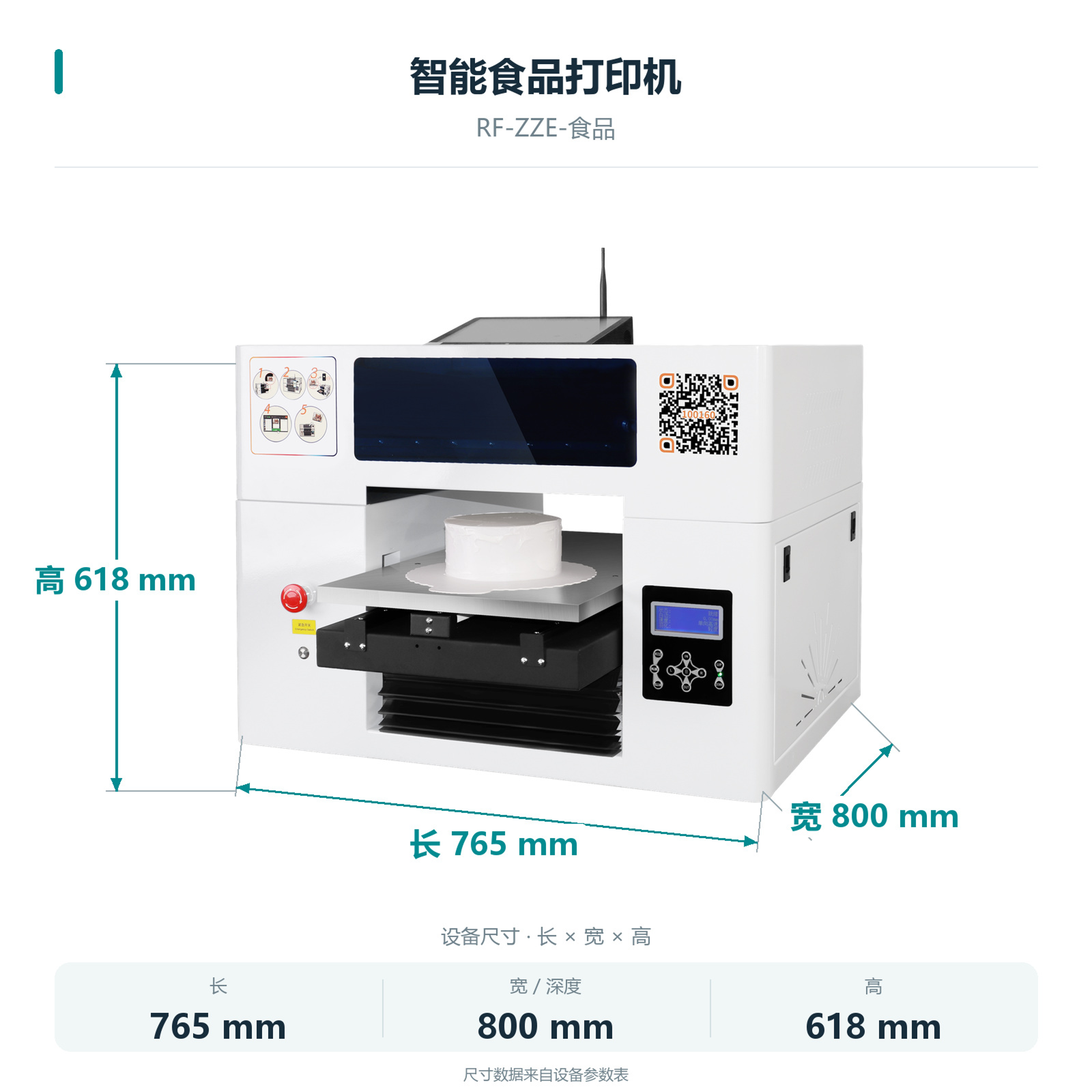

Machine dimensions
View full image ⤢Machine dimensions
RF-ZZE food version · Custom bakery designs

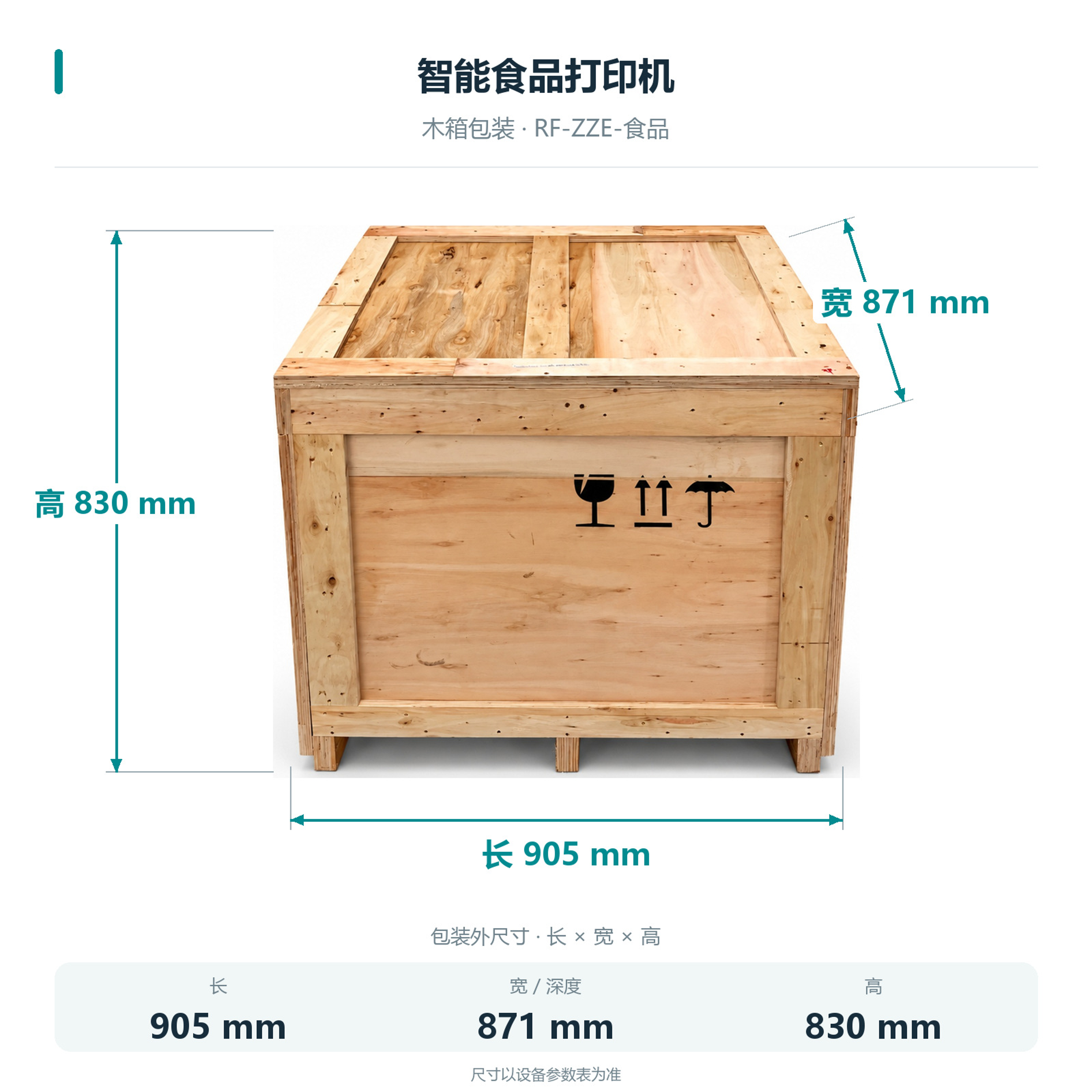

Packing dimensions
Wooden crate: 905×871×830 mm. Check handling and access space in advance.
View full image ⤢Crate dimensions
RF-ZZE food version · Custom bakery designs
Installation
The machine is 765×800×618 mm and weighs 62 kg. Allow room for platform travel, the computer and cleaning.
Computer and network
Choose the computer setup. Cloud customization needs a working network.
Food placement
Match trays, placement and height to the actual food.
Operation training
Remote installation training; manual loading, order selection and collection.
RF-ZZE food version · Custom bakery designs
Maintenance
Use food-grade ink; UV curing is not required. Clean the printhead, ink supply and food-loading area as trained.
Printhead cleaning
Automatic and manual cleaning supported. Follow training.
Platform and ink supply
Keep the food-loading area clean and use the specified food-grade ink.
RF-ZZE food version · Custom bakery designs
Free sample printing
Send item photos and artwork first. Agree on requirements before sending or bringing samples.
Free sample printing
Sample printing is free with no quantity limit. Customers cover shipping; charges for special materials and custom fixtures are confirmed after assessment.
Request free sample printing →Training and warranty details
Remote setup training is available. One-year warranty from receipt excludes printheads and consumables; customers cover warranty shipping.
View training and warranty →RF-ZZE food version · Custom bakery designs
Training and warranty
Remote installation training is provided. Confirm on-site arrangements and fees with technical service.
One-year warranty
One year from receipt, excluding printheads and consumables. Customers cover warranty shipping.
On-site service
Customers cover service and travel costs. Technical service confirms the fees.
