RF-GF1

Golf ball printer

Print names, logos or designs on golf balls. Includes a 10.1-inch touch computer. Test actual balls for holding method and print placement.

Discuss your needs Request free sample printing

Browse all equipment →

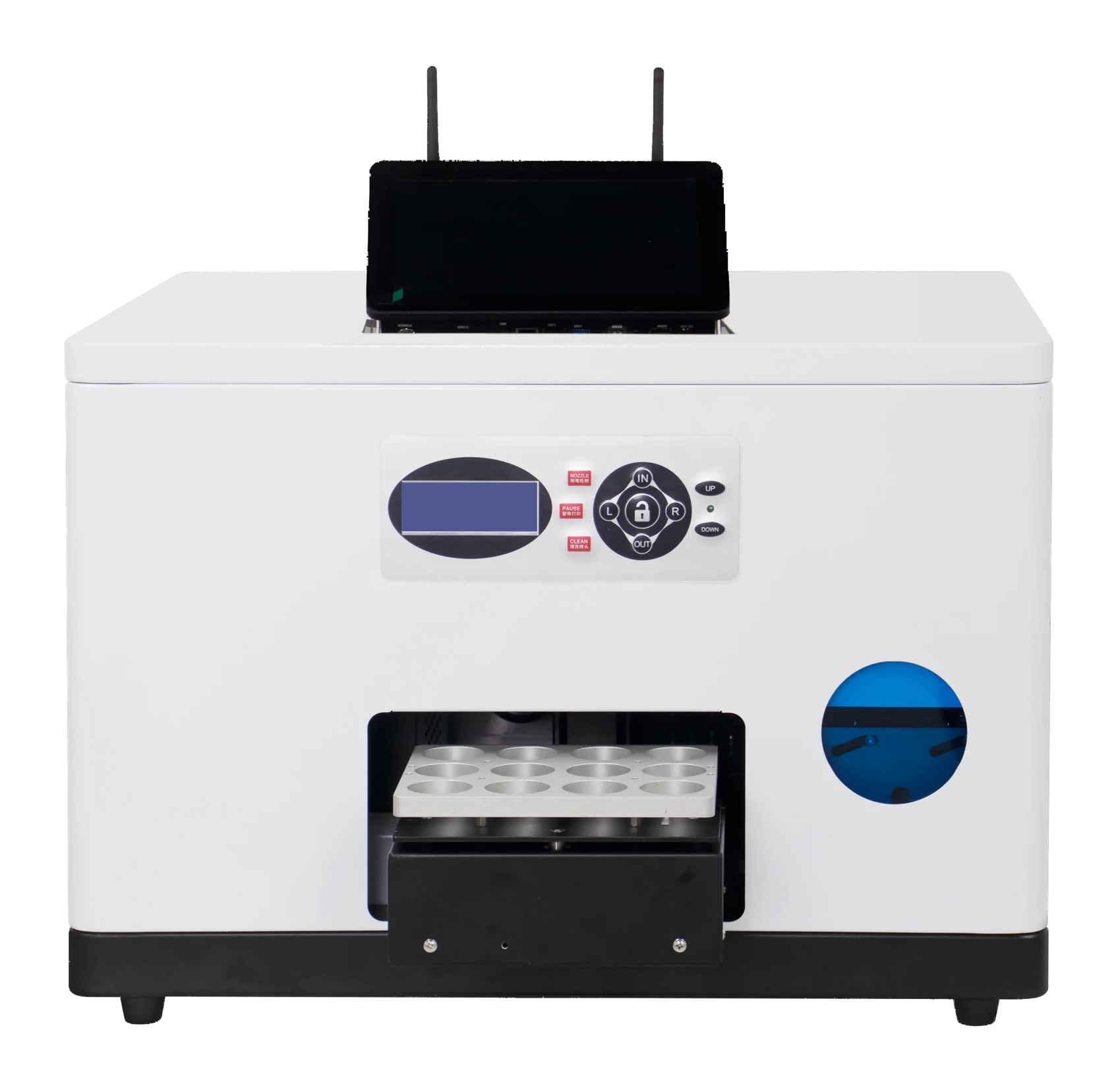

Golf ball printer — Equipment appearance and structure

RF-GF1

What you can print

Names and logos

Personalize balls for players or events.

Ball fixtures

Match the fixture to the ball and artwork placement.

Test an actual ball

Test actual balls for color, placement and how well the design holds.

RF-GF1

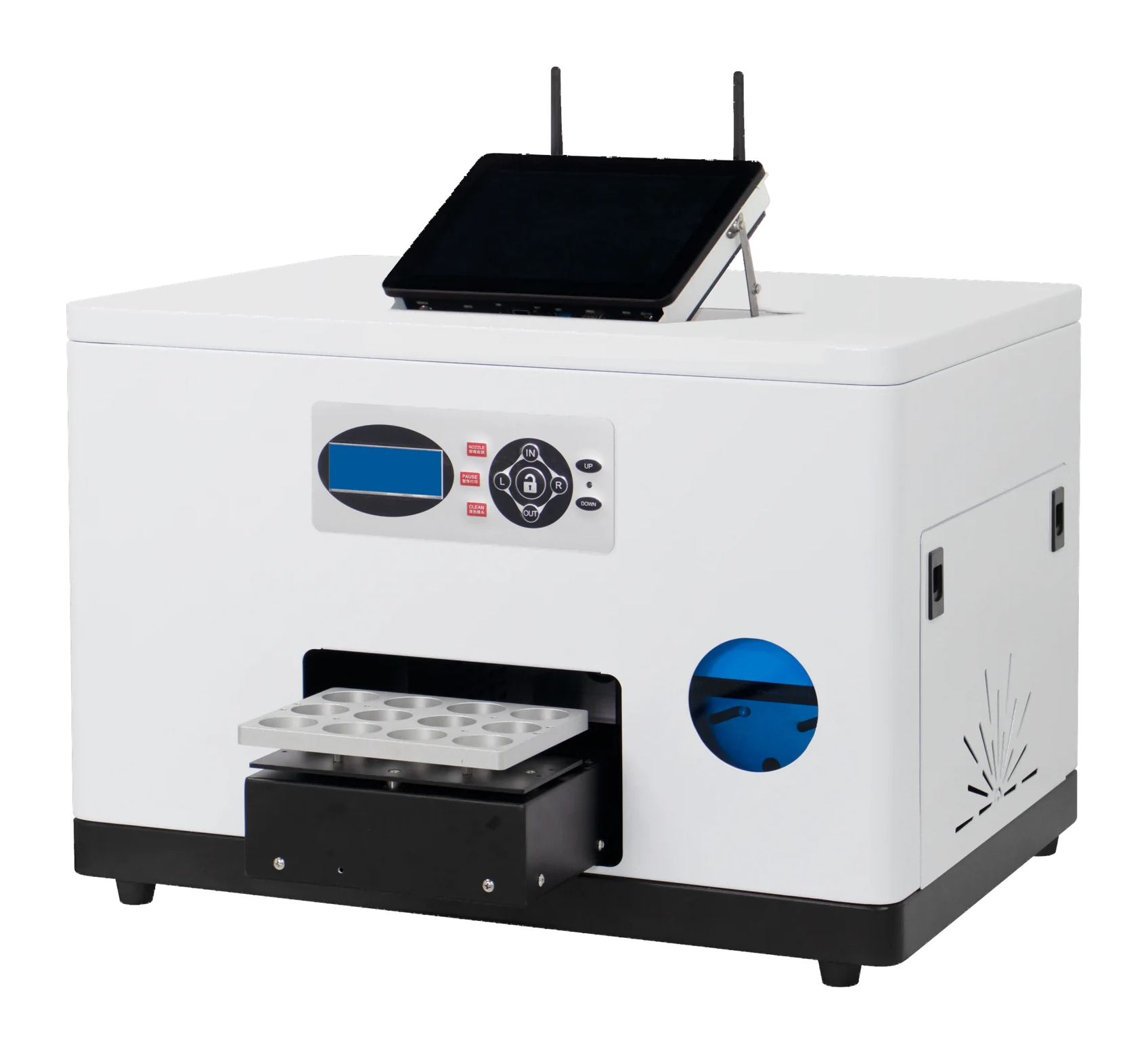

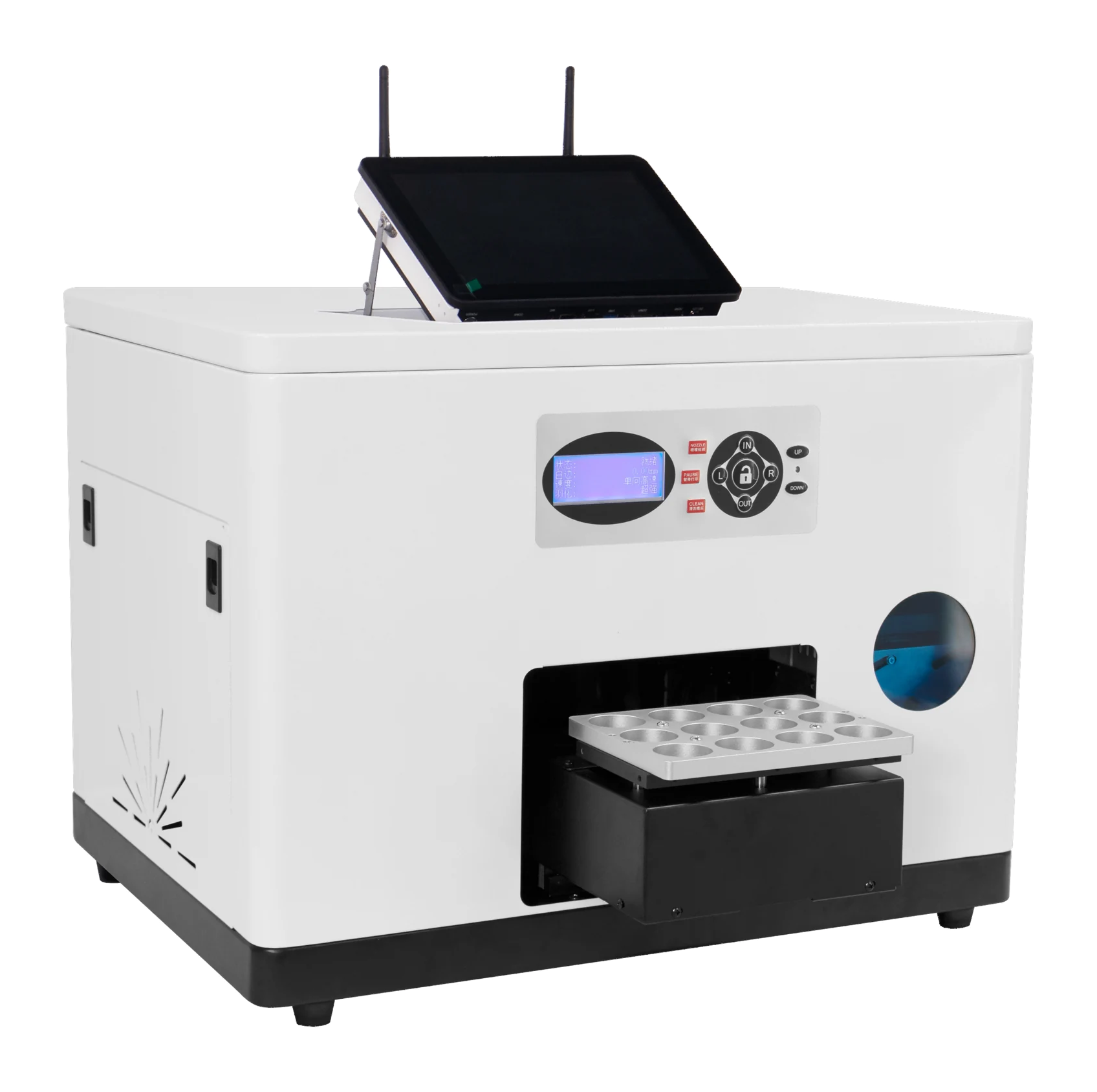

Machine views

View image ⤢

Front-right view

Select a view above, or open the image to see more detail.

RF-GF1

See the print examples.

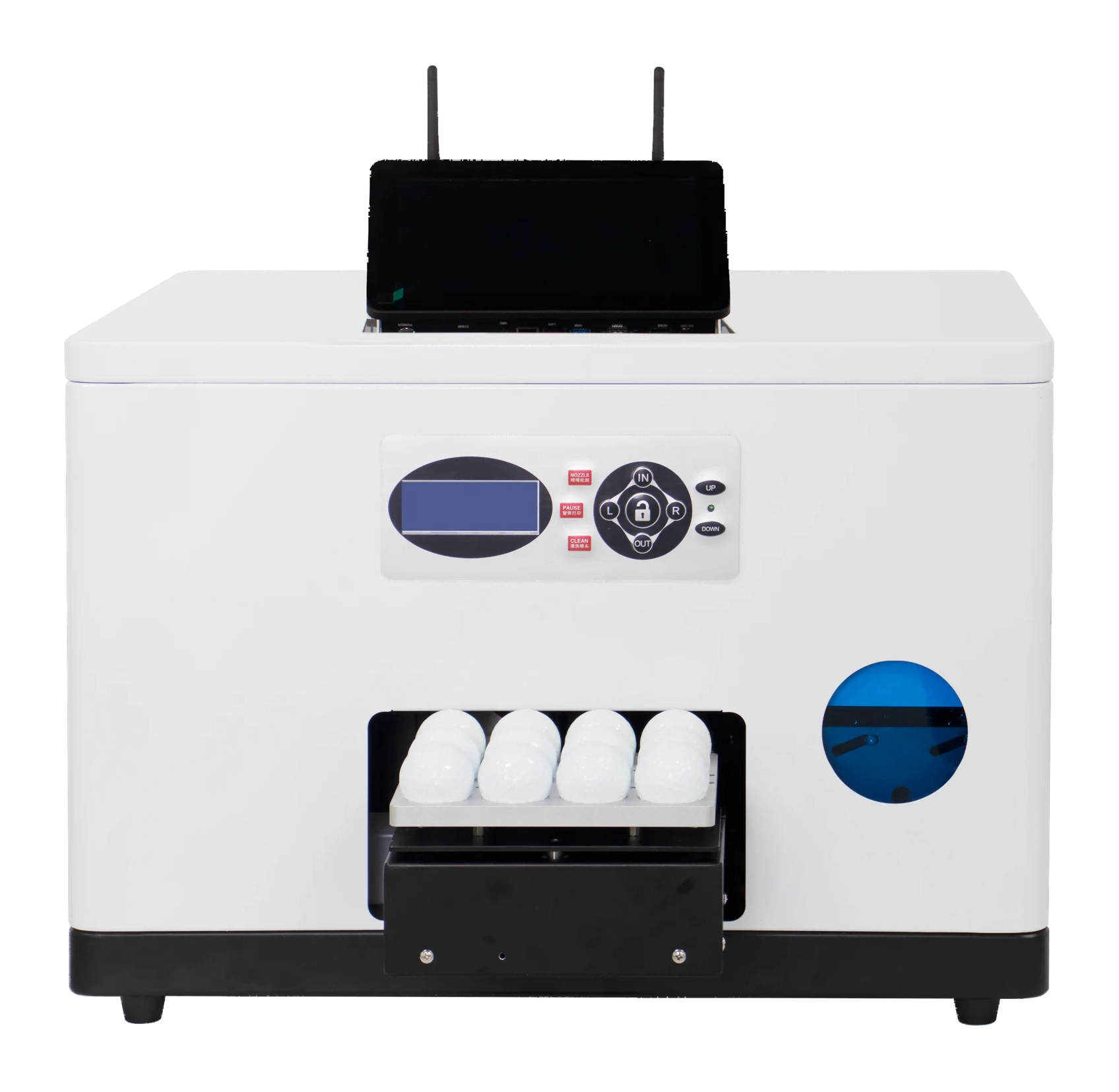

Golf-ball design reference
Design reference from this model’s materials. Test your own ball material and artwork.

RF-GF1

Key specifications

Print area: 100 × 185 mm
Item height: Fixed height; assess actual items
Ink and finish: UV ink; CMYK color
Computer setup: 10.1-inch touchscreen computer included
Machine size: 600×460×425 mm
Net weight: 34.0 KG
Printhead model: EPSON-F1080
Printhead count: Single head
Printhead maintenance: Automatic / manual cleaning
Power supply: AC 220 V / 110 V, 50–60 Hz

RF-GF1

Load the ball, then confirm the design and print.

01
Prepare items and artwork
Provide actual balls and artwork. Confirm the surface material, design size and placement.
02
Hold and print
Hold the ball with a matching fixture, check artwork on the touch computer and print.
03
Collect and check
Collect the ball and check artwork placement, color and how well the design holds.

RF-GF1

What is needed to operate it?

Computer and operation

10.1-inch touchscreen computer included

How to hold the ball

Fixtures hold the ball in place. Test actual balls for dimensions and artwork placement.

RF-GF1

Machine details

Machine structure · enlarged source image
Ball platform and operating controls.

RF-GF1

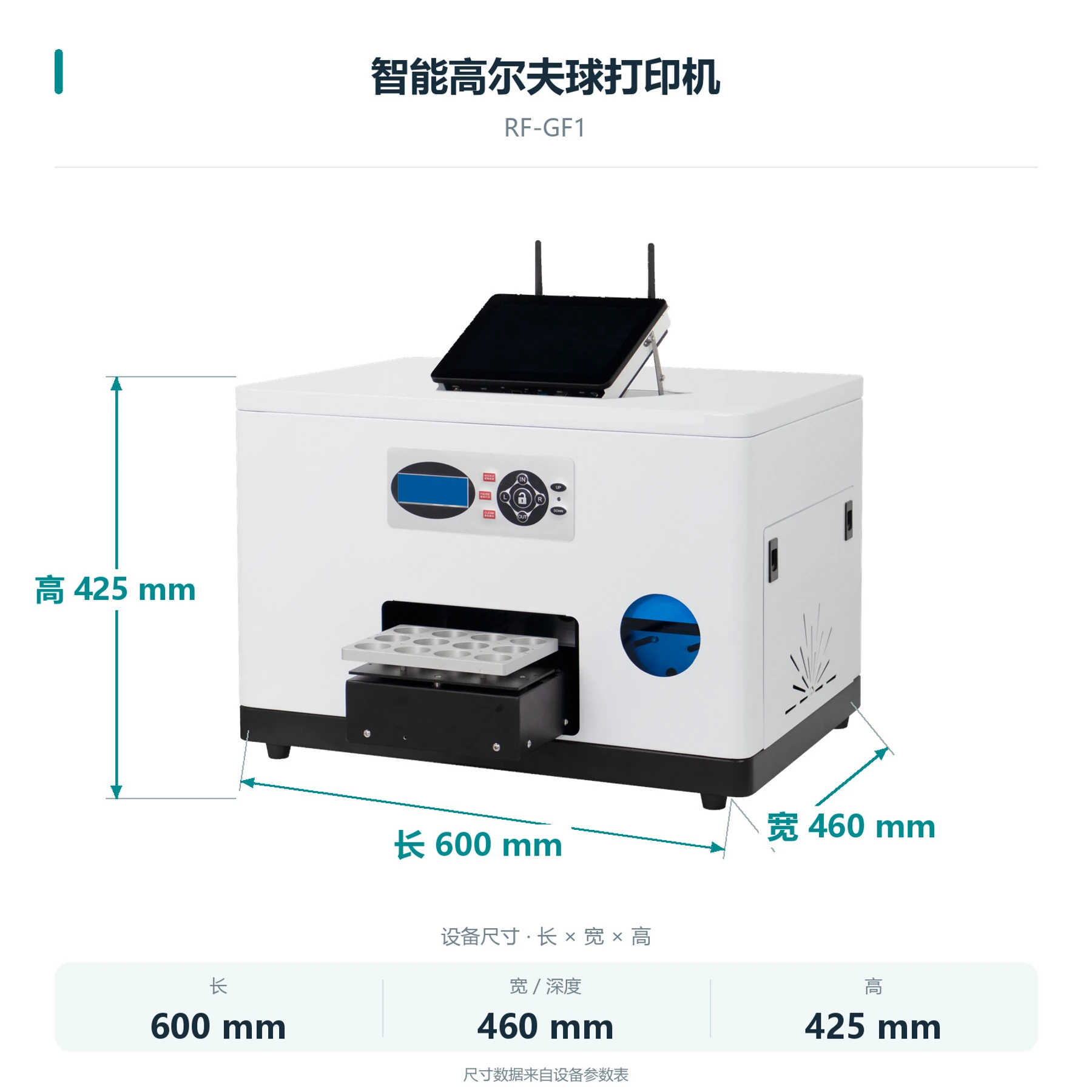

Machine dimensions

RF-GF1

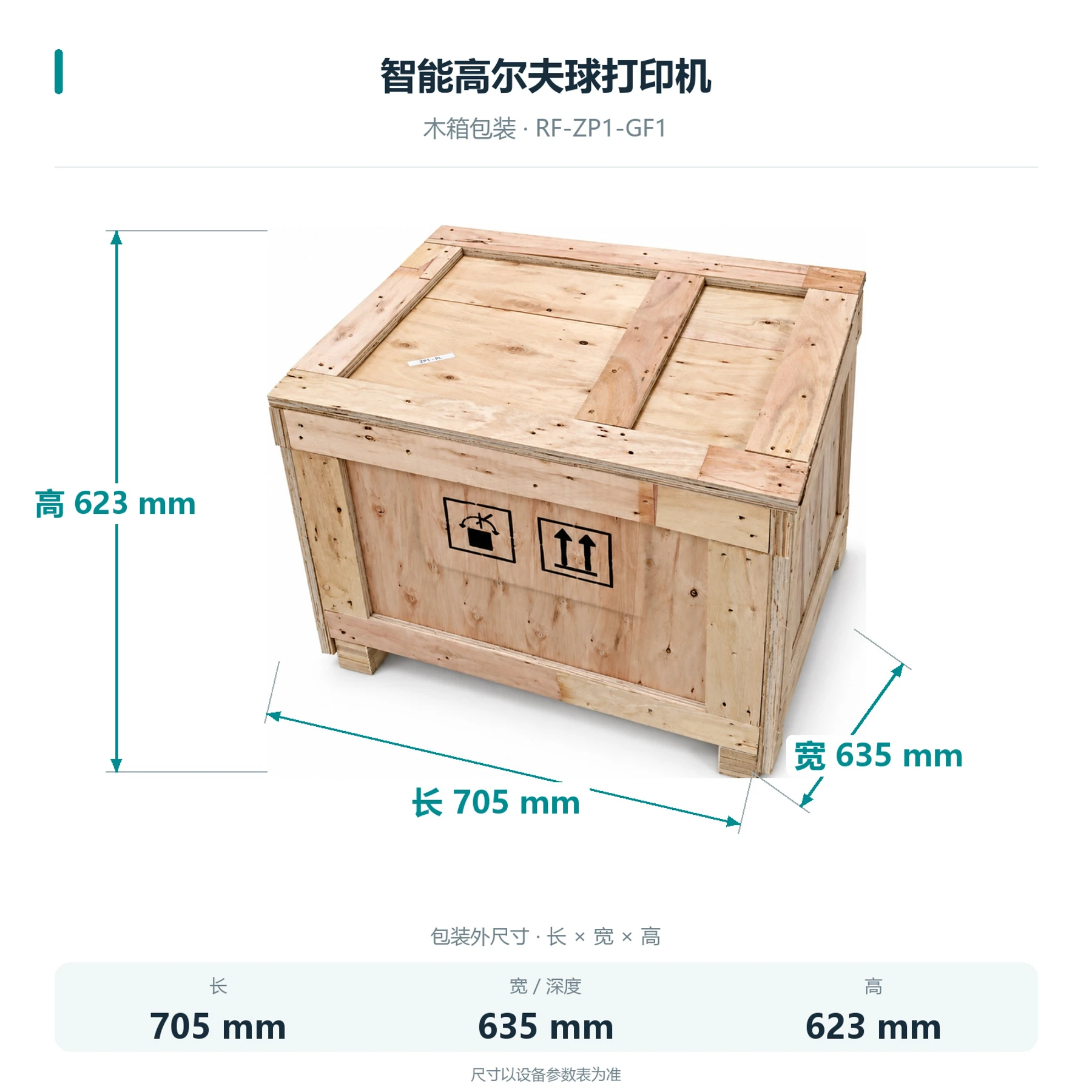

Packing dimensions

RF-GF1

Free sample printing

Send item photos and artwork first. Agree on requirements before sending or bringing samples.

Free sample printing

Sample printing is free with no quantity limit. Customers cover shipping; charges for special materials and custom fixtures are confirmed after assessment.

Request free sample printing →
